| GENERAL |

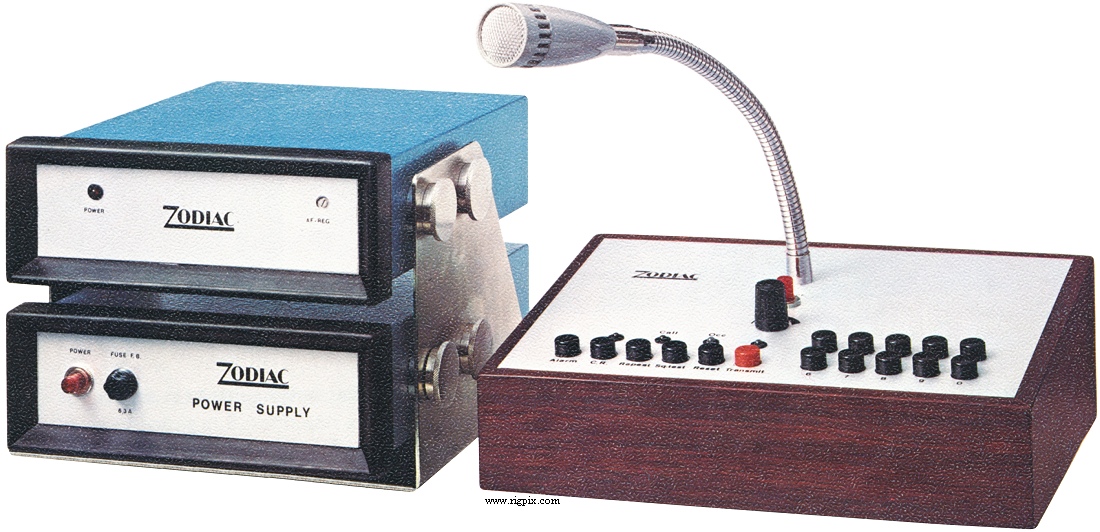

| Type: | Professional land mobile VHF transceiver |
| Frequency range: |
68-88 MHz (Any 1 MHz segment, according to alignment)
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
Up to 16 regular (Depending on options and configuration)
Two XTALs per channel
|
| Repeater shift / offset: | Depending on XTALs |
| Power supply: | 13.2 VDC (From separate 220 VAC PSU) |
| Current drain / power consumption: | RX: 200-500 mA @ 13.2 VDC
TX: Max 4 A @ 13.2 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Transceiver: 190*66*250 mm (7.48*2.6*9.84") |
| Weight: | Transceiver: 2.9 Kg (6.39 lb) |
| Other features: | Selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.4 uV (20 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 80 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 3% distortion / No internal speaker |
| External speaker connector: | 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 25 W (50 W option)
|
| Modulation system: | Phase modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.2 uW |
| Microphone impedance / connector: | ? ohm / Built-in |
| Microphone input level: | 2 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1975-197x (Discontinued) |
| Additional info: |
New price 1975 in Sweden: SEK 5345:-
New price 1977 in Sweden: SEK 5865:-
|
| Related documents: | Service manual (74.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
?
?
|
2-tone selcall unit
5-tone selcall unit
|
|
