| GENERAL |

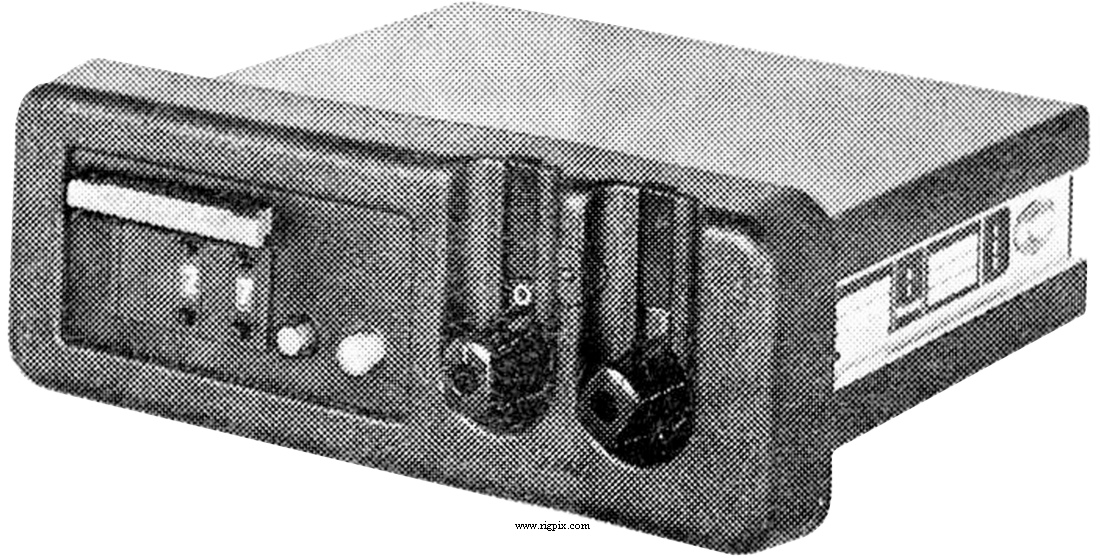

| Type: | Professional land mobile VHF transceiver |
| Frequency range: |
68-87.5 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
12 regular
Two XTALs per channel
|
| Repeater shift / offset: | According to XTALs |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / BNC (On pigtail) |
| Dimensions (W*H*D): | 181*52*170 mm (7.13*2.05*6.69") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | Various selcall options. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.25 uV (No SINAD reference) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
10 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
