| GENERAL |
| Type: | Professional land mobile VHF or UHF transceiver |
Frequency range
depending on version: |
| E0: | 66-88 MHz |
| AC: | 136-174 MHz |
| K1: | 174-208 MHz |
| KM: | 208-245 MHz |
| R1: | 335-375 MHz |
| R3: | 335-400 MHz |
| TK: | 400-450 MHz |
| TU: | 400-480 MHz |
| UH: | 440-520 MHz |
| UW: | 440-520 MHz |
|
| Tuning steps: | Channelized (Programmable in 10 / 12.5 / 20 / 25 KHz increments) |
| Frequency stability: | ±2 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM |
| Channels / memory management: | 100 regular |
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC (10.8-16.3 VDC) |
| Current drain / power consumption: | RX: Less than 200 mA (Squelched)
TX: Max 6.5 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | Transceiver: 170*56*165 mm (6.69*2.2*6.5")
Controller mic: 68*96*44 mm (2.68*3.78*1.73") |
| Weight: | Transceiver: 1.8 Kg (3.97 lb)
Controller mic: 200 g (7.06 oz) |
| Other features: |

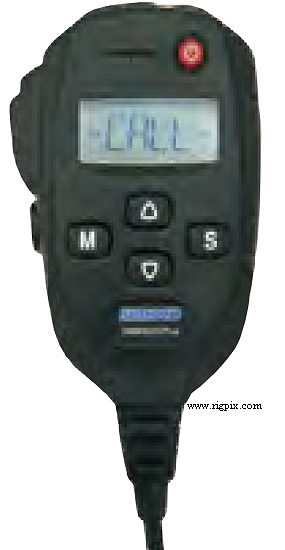

Six characters controller mic. CTCSS/PL and DCS. DTMF. Scrambler.
MPT1327 trunking. Scanning. 1200/2400 baud FFSK data modem.
DSP technology.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne with I/Q demodulator
IF: 45 MHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | >73 dB (25 KHz adjacent channel)
>65 dB (12.5 KHz adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 4 W at 5% distortion / 4 ohm (External only) |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25-1 W (Programmable)
Low: 1-25 W (Programmable)
(20% duty cycle)
|
| Modulation system: | |
| Max FM deviation (Factory set): | |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular, RJ45) |
| Microphone input level: | 40 mV ±2 dB (@ 1 KHz) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2001-201x (Discontinued) |
| Additional info: | Simoco = System Integration MObile COmmunication |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
