| GENERAL |
| Type: | Professional land mobile VHF or UHF transceiver |
Frequency range
depending on version: |
68-88 MHz
132-156 MHz
146-174 MHz
174-208 MHz
192-225 MHz
380-440 MHz
425-450 MHz
440-470 MHz
470-520 MHz
|
| Tuning steps: | Channelized (Programmable in ? KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
100 regular
|
| Duplex shift / offset: | Programmable |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 1 A
TX: Max 8 A |
| Antenna impedance / connector: | 50 ohm / BNC |

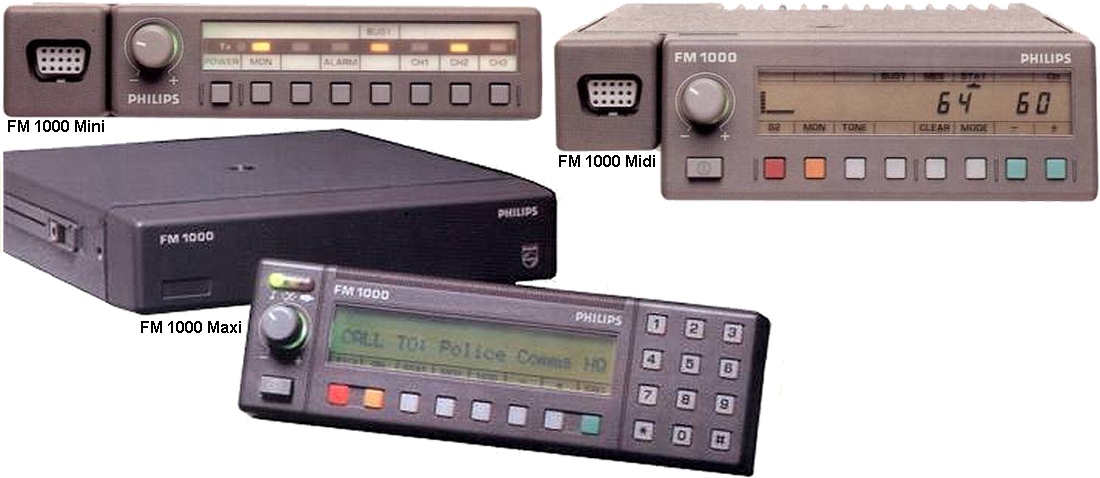

| Dimensions (W*H*D): |
Mini head: 143*38*30 mm (5.63*1.5*1.18")
Midi head: 143*57*30 mm (5.63*2.24*1.18")
Maxi head: 185*57*30 mm (7.28*2.24*1.18")
Transceiver unit: 185*39*210 mm (7.28*1.54*8.27")
|
| Weight: | Transceiver unit: 1.6 Kg (3.53 lb) |
| Other features: | Various features depending on head version. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
68-174 MHz: 1-30 W
174-225 MHz: 1-25 W
380-520 MHz: 1-6 W or 6-25 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 199x-200x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
