| GENERAL |

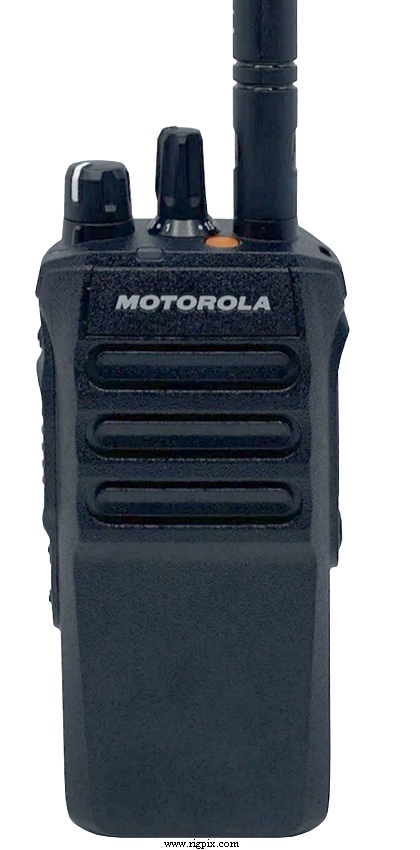

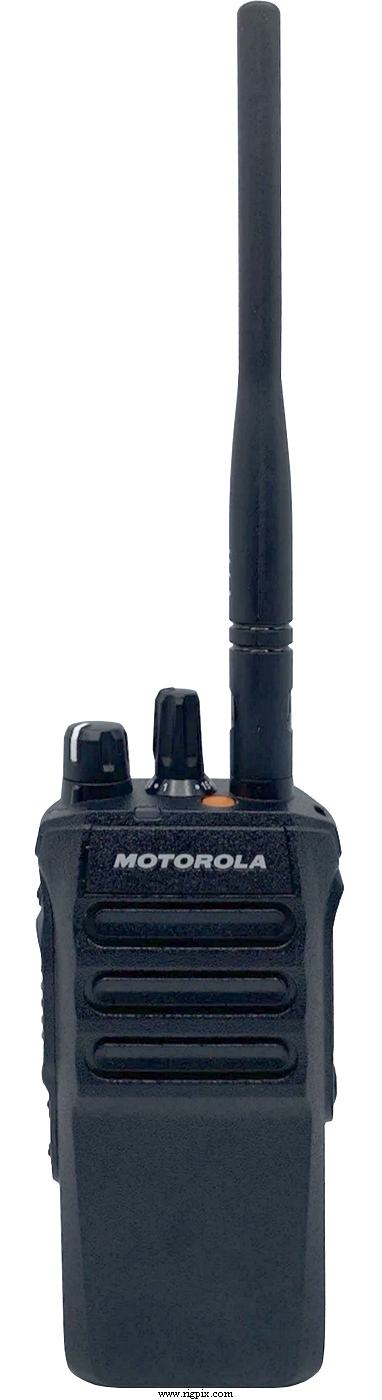

| Type: | Professional land mobile VHF transceiver |
| Frequency range: |
136-174 MHz
|
| Tuning steps: | Channelized (Programmable in 2.5 / 5 / 6.25 / 12.5 / 20 / 25 KHz increments) |
| Frequency stability: | ±0.5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | MotoTRBO (DMR tier II/III) and FM / NFM |
| Channels / memory management: |
64 regular in four zones (16 channels per zone)
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.5 VDC (Li-Ion battery) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / Proprietary |
| Dimensions (W*H*D): | 56*132*37 mm (2.2*5.2*1.46"), with PMNN4808 battery |
| Weight: | 319 g (11.25 oz), with PMNN4808 battery |
| Other features: |
CTCSS/PL, DCS and MDC1200. Voice announcement. Emergency
button. OTA programming (Via DMR). GCAI mini accessory port. Four
programmable buttons. IP66 and IP68 water proof. MIL-STD 810.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM/NFM: 0.16 uV (12 dB SINAD)
DMR: 0.14 uV (5% BER)
|
| Squelch sensitivity: | |
| Selectivity: | 12.5 KHz (-45 dB)
20 KHz (-70 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W (Rated) at 1.5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Low: 1 W
|
| Modulation system: |
FM/NFM: ?
DMR: C4FM (AMBE+2)
|
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±4 or 5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 2022-202x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (2.9 MB, English and German)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
PMNN4807
PMNN4808
PMNN4809
PMNN4810
|
Slim "Impres" Li-Ion battery. 7.5 V, 2200 mAh
Li-Ion battery. 7.5 V, 2450 mAh
"Impres" Li-Ion battery. 7.5 V, 2850 mAh
HazLoc "Impres" Li-Ion battery. 7.5 V, 3200 mAh
|
|
