| GENERAL |

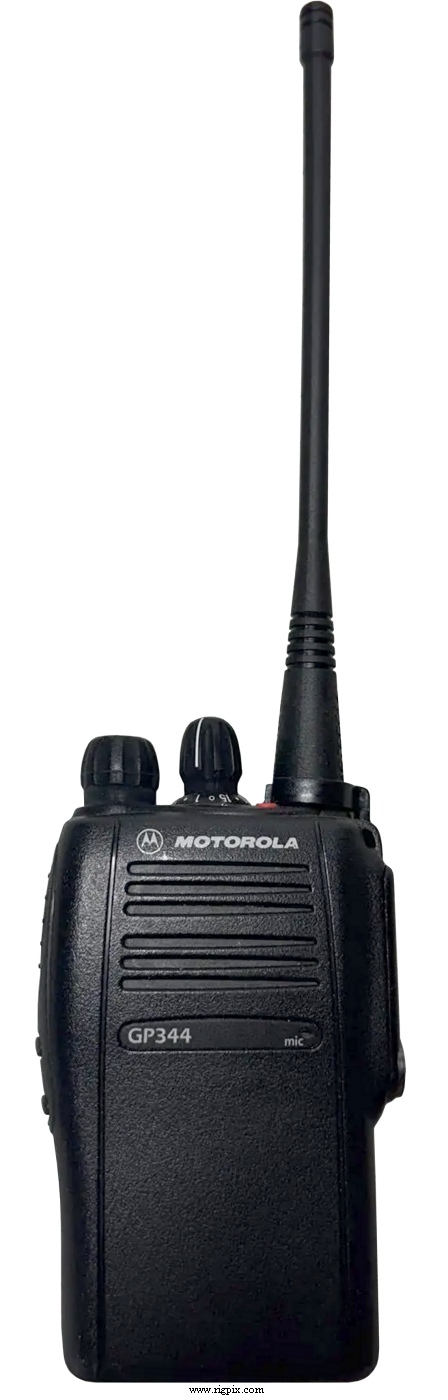

| Type: | Professional land mobile VHF or UHF transceiver |
Frequency range
depending on version: |
136-174 MHz
403-470 MHz
|
| Tuning steps: | Channelized (Programmable in ? KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
16 regular
|
| Duplex shift / offset: | Programmable |
| Power supply: | ? VDC (Li-Ion battery) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 56*102*31 mm (2.2*4.02*1.22") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL or Select 5/5-tone CCIR. VOX. Lone Worker Radio enters
emergency mode if user does not respond.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
VHF version: 1-5 W (Adjustable)
UHF version: 1-4 W (Adjustable)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 200x-200x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
