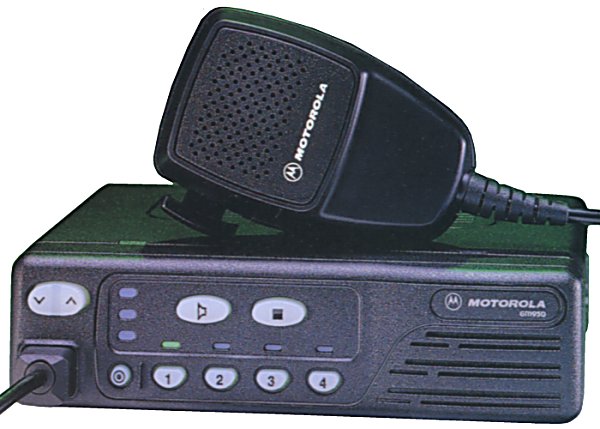

| Type: | Professional land mobile transceiver |
Frequency range
depending on version: | 68-88 MHz
136-174 MHz
403-470 MHz |
| Mode: | FM |
| RF Power output: | 5-25 W |
| Sensitivity: | <0.35 uV (12 dB SINAD) |
| Selectivity: | >60 dB (12.5 KHz), >70 dB (20/25 KHz) ETS |
| Image rejection: | >70 dB ETS |
| Voltage: | 10.8-15.6 VDC |
| Current drain: | RX: ? mA
TX: Max ? A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 168*44*160 mm |
| Weight: | 1.03 Kg |
| Manufactured: | 200x-200x (Discontinued) |
| Other: | Select 5/5-tone selcall. CTCSS/PL. 4 channels
Split mounting option. |
| Related documents: | |
