| GENERAL |

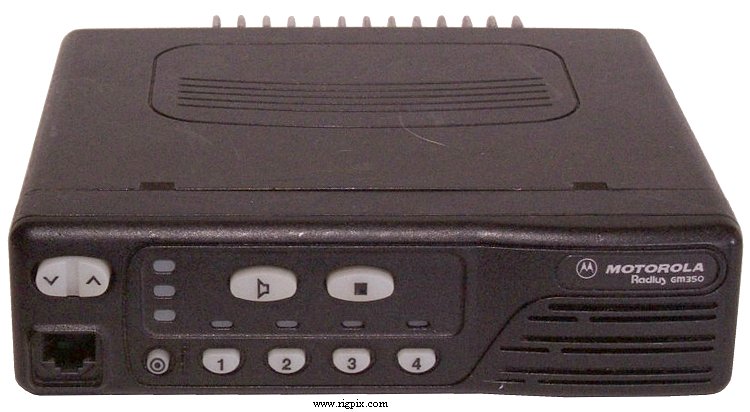

| Type: | Professional land mobile VHF or UHF transceiver |
Frequency range
depending on version: |
66-88 MHz
136-174 MHz
300-345 MHz
403-470 MHz
See also the model chart
|
| Tuning steps: | Channelized (Programmable in 12.5 / 20 / 25 KHz increments) |
| Frequency stability: | ±2 ppm @ -25 to +55°C (-13 to +131°F) |
| Mode: | FM |
| Channels / memory management: |
4 regular (Non-display version)
128 regular (Display version)
|
| Duplex shift / offset: | Programmable |
| Power supply: | 10.8-15.6 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 168*44*180 mm (6.61*1.73*7.09") |
| Weight: | 1.03 Kg (2.27 lb) |
| Other features: | CTCSS/PL & DCS. Scrambler option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz (VHF Low "Midband") - 45.1 MHz (VHF High and UHF)
2nd IF: 455 KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel @ 12.5 KHz)
70 dB (Adjacent channel @ 20 / 25 KHz) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 5 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 / 4 / 5 KHz (Depending on programming) |
| Spurious emissions: | Better than -0.25 uW |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia and other, 199x-200x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (74 KB)
Service manual (859 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
