| GENERAL |

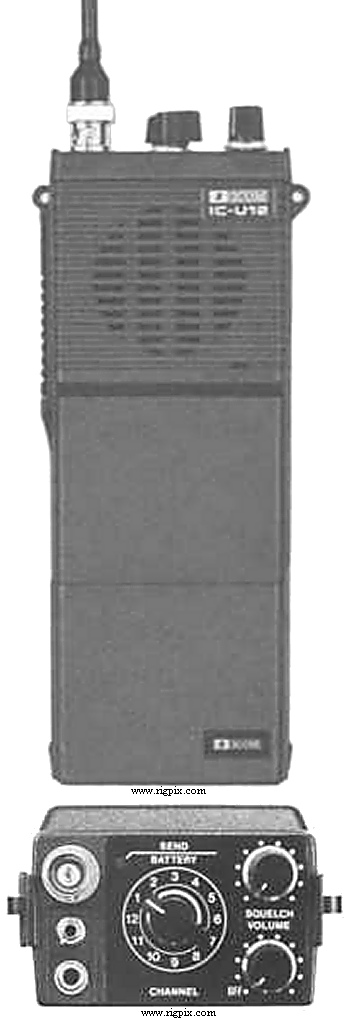

| Type: | Professional land mobile UHF transceiver |
| Frequency range: |
406-470 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
12 regular (Programmable diode matrix)
|
| Repeater shift / offset: | |
| Power supply: | ? VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*117*45 mm (2.56*4.6*1.77"), without battery |
| Weight: | 590 g (1.3 lb), with CM5 battery and antenna |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
3 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: |

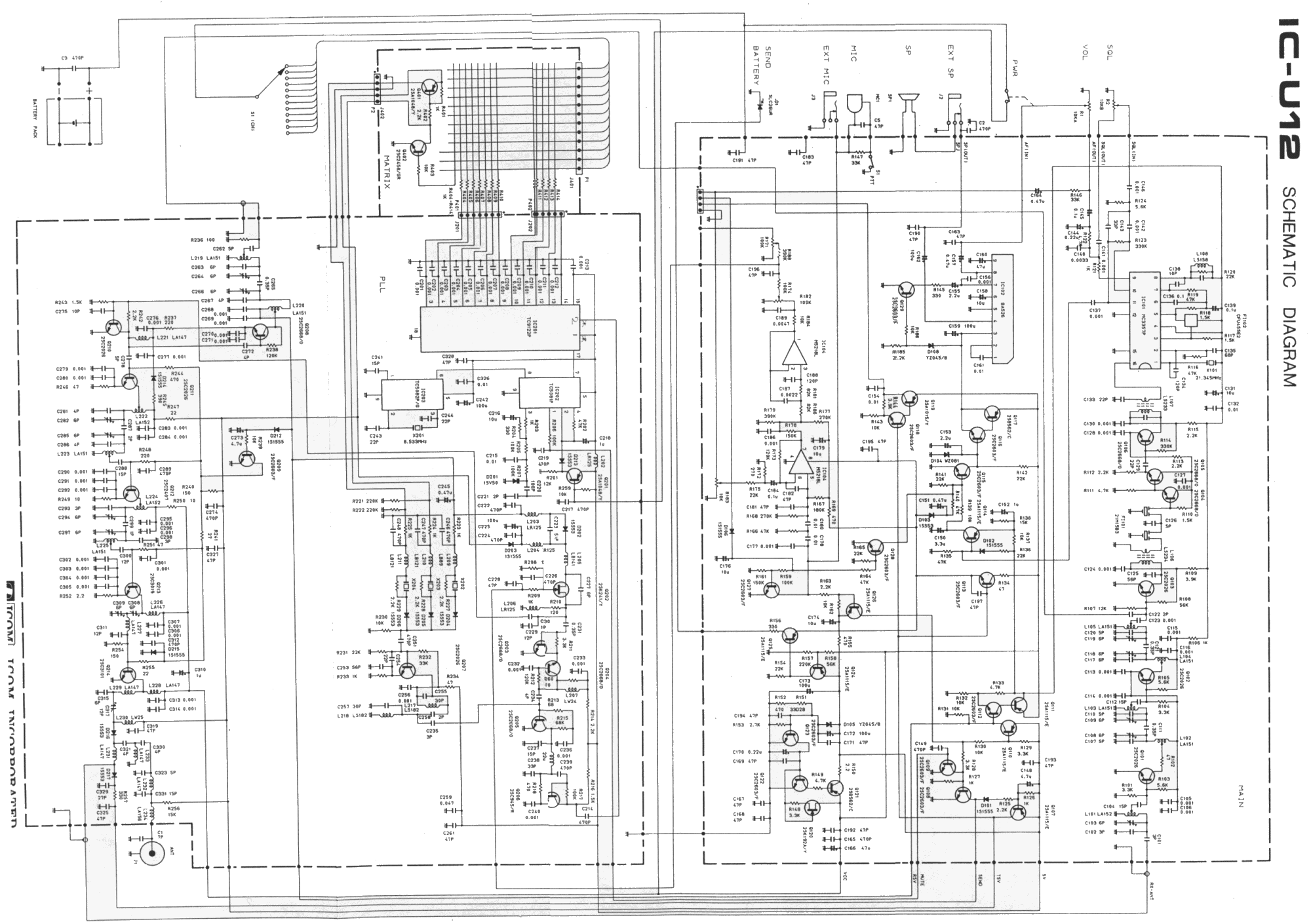

Schematic diagram (355 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
