| GENERAL |

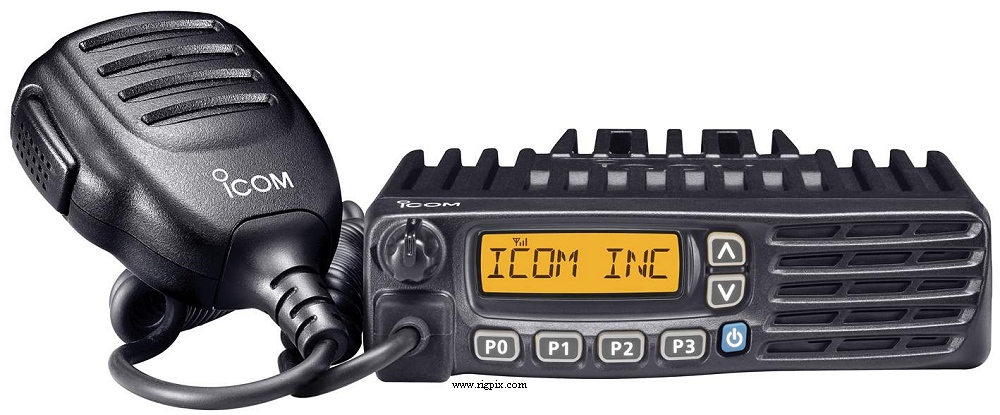

| Type: | Professional land mobile UHF transceiver |
Frequency range
depending on version: |
350-400 MHz
400-470 MHz
450-512 MHz
|
| Tuning steps: | Channelized (Programmable in 2.5 / 3.125 KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | IDAS (FDMA) and FM / NFM |
| Channels / memory management: |
128 regular
8 zones
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.6 VDC |
| Current drain / power consumption: | RX: 0.3-1.2 A
TX: Max 11 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*40*168 mm (5.91*1.57*6.59") |
| Weight: | 1.1 Kg (2.4 lb) |
| Other features: |
Analog FM: 2-tone. 5-tone. CTCSS/PL and DTCS. DTMF autodial. Lone worker and more.
Digital IDAS: PTT ID. Stunn/kill/revive. DV scrambler. Emergency. GPS and more.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
FM/NFM: 0.25 uV (12 dB SINAD)
IDAS: 0.18 uV (5% BER)
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4 W at 5% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 45 W
L2: 25 W
L1: 4.5 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM/IDAS: ±2.5 KHz |
| Spurious emissions: | Better than -72 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2011-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HM-148G
HM-148T
HM-152
HM-152T
OPC-1939
OPC-2078
SM-26
SP-22
SP-30
|
Heavy duty microphone
Heavy duty DTMF microphone
Standard microphone
Standard DTMF microphone
15-pin ACC cable
25-pin ACC cable
Desktop microphone
External speaker
External speaker
|
|
