| GENERAL |

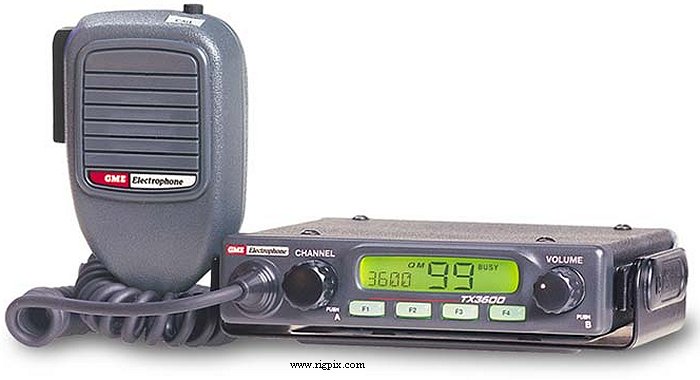

| Type: | Professional land mobile UHF transceiver |
| Frequency range: |
450-520 MHz
|
| Tuning steps: | Channelized (Programmable in 12.5 / 25 KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
? regular with alpha tags
|
| Duplex shift / offset: | |
| Power supply: | 10-16 VDC |
| Current drain / power consumption: | RX: 190-750 mA
TX: Max 1.7 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 128*29*117 mm (5.04*1.14*4.61") |
| Weight: | ? Kg (? lb) |
| Other features: |
CTCSS/PL and CCIR. DTMF. Scanning. Detachable head.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | -122 dBm (12 dB SINAD unweighted) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Australia, 200x-200x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
