| GENERAL |

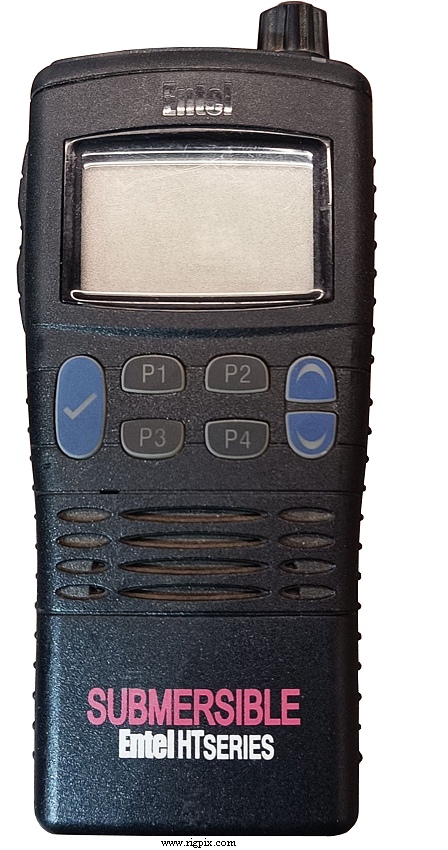

| Type: | Professional land mobile transceiver |
| Frequency range: |
66-88 MHz
|
| Tuning steps: | Channelized (Programmable in 5 and 6.25 KHz increments) |
| Frequency stability: | ±2.5 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode: | FM |
| Channels / memory management: | 128 |
| Duplex shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: 50-160 mA
TX: 1 / 1.8 A |
| Antenna impedance / connector: | 50 ohm / Threads |
| Dimensions (W*H*D): | 59*130*33 mm (2.32*5.12*1.3") |
| Weight: | 296 g (10.4 oz), with battery and antenna |
| Other features: |
CTCSS/PL and DCS/DPL. PC programmable. VOX. Scanning.
JIS7 waterproof.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | Wide: 70 dB (Adjacent channel)
Narrow: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | Wide: ±5 KHz
Narrow: ±2.5 KHz |
| Spurious emissions: | Better than -30 dBm |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2003-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
