| GENERAL |

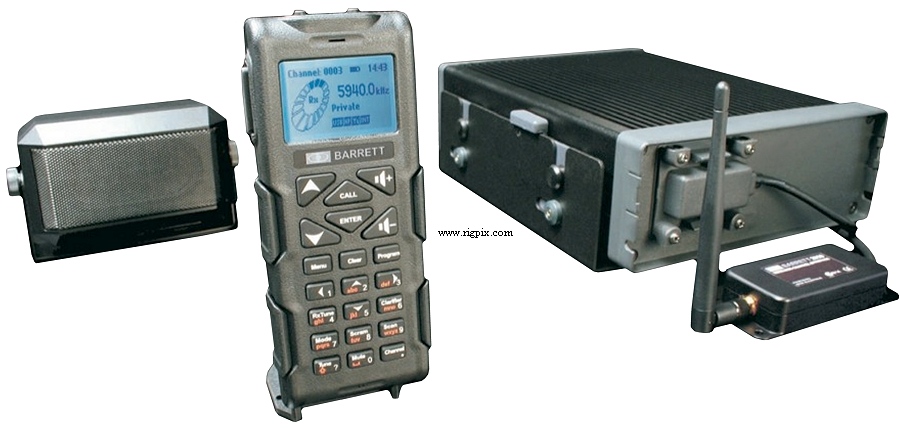

| Type: | Professional land mobile HF transceiver |
Frequency range
depending on version: |
TX: 1.6-30 MHz
RX: 0.25-30 MHz
|
| Tuning steps: | |
| Frequency stability: | ? ppm |
| Mode: | AM / SSB / CW / AFSK |
| Channels / memory management: | |
| Duplex shift / offset: | |
| Power supply: | 13.8 VDC +20/-10% |
| Current drain / power consumption: | RX: 460 mA (Standby)
TX: Max 12 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | Main unit: 185*?*235 mm (7.28*?*9.25")
Remote unit: 59*142*21 mm (2.32*5.59*0.83") |
| Weight: | Main unit: ? Kg (? lb)
Remote unit: ? g (? lb) |
| Other features: |
CCIR Selcall system. Encryption/FHSS options.
Wireless remote unit (TDMA/FHSS, 2.4 GHz, 1 mW)
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 125 W (PEP)
Mid: 30 W (PEP)
Low: 10 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Australia, 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
