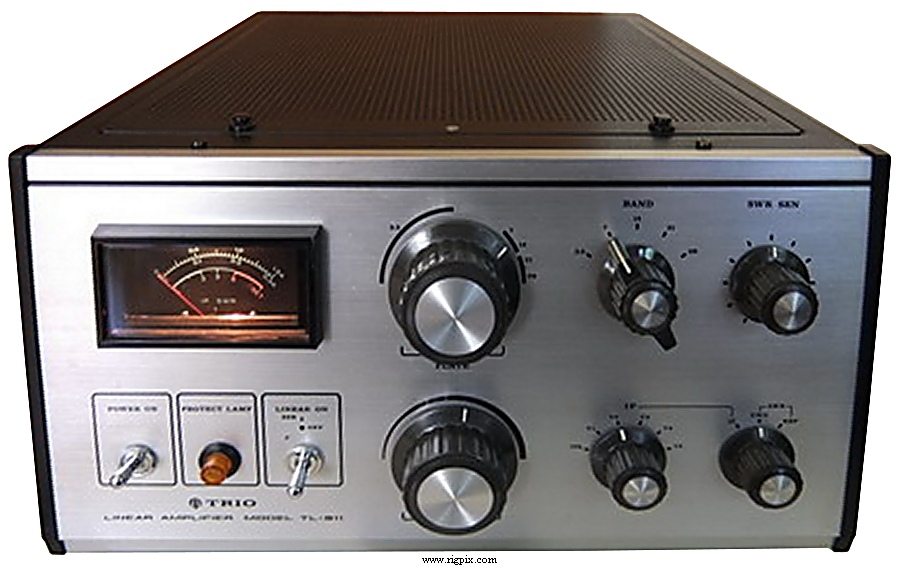

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): | 10-80 m |
| Output power: | SSB: 1 KW PEP
CW: 700 W |
| Drive power: | Max 100 W |
| Power supply: | Mains |
| Current drain / power consumption: | Max 10 A @ 230 VAC |
| Impedance / connectors: | 50-75 ohm / Two SO-239 (M-jack) |
| Dimensions (W*H*D): | 332*170*345 mm (13.06*6.69*13.56") |
| Weight: | 18.5 Kg (40.7 lb) |
| Manufactured: | Japan, 1972-197x (Discontinued) |
| Other: |
Five 6LQ6 sweep tubes.
|
| Related documents: |
User manual (1.7 MB)
Service manual (1.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
