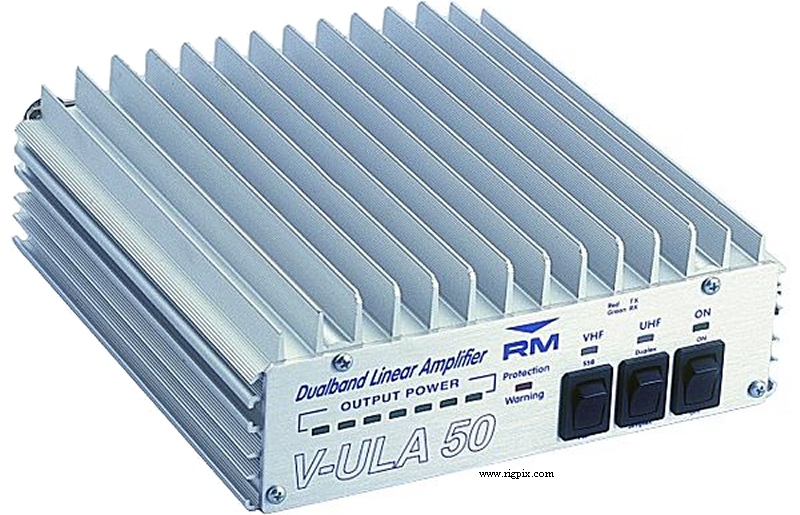

RM Italy V-ULA 50
SPECIFICATIONS
| Type: | Amateur VHF/UHF dual band linear amplifier |
| Frequency range / band(s): |
140-150 / 420-440 MHz (2 m / 70 cm)
|
| Output power: |
2 m: 70 W
70 cm: 50 W
|
| Drive power: | 0.5-8 W |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | 3-12 A |
| Impedance / connectors: | 50 ohm / Two ? |
| Dimensions (W*H*D): | 160*45*168 mm (6.3*1.77*6.61"), excluding heat sink |
| Weight: | 1.5 Kg (3.31 lb) |
| Manufactured: | Italy, 200x-20xx |
| Other: |
Preamp, 2 m: 18-22 dB, 70 cm: 10-18 dB.
New price 2002 in Europe: 351.20 Euro.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
