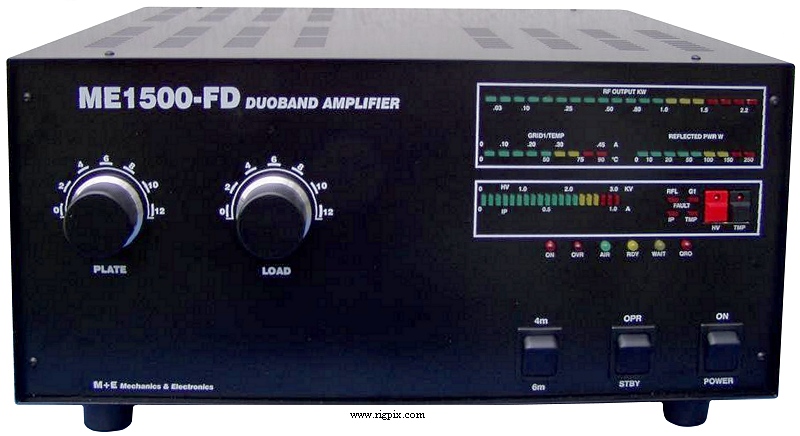

| Type: | Amateur VHF dualband linear amplifier |
| Frequency range / band(s): |
50-52 / 70-72 MHz (6 / 4 m)
|
| Output power: |
SSB: 1.4 KW (PEP)
cW: 1 KW
|
| Drive power: | 80-100 W |
| Power supply: | Mains: 220-240 VAC, 50-60 Hz, single phase |
| Current drain / power consumption: | Max 1800 VA |

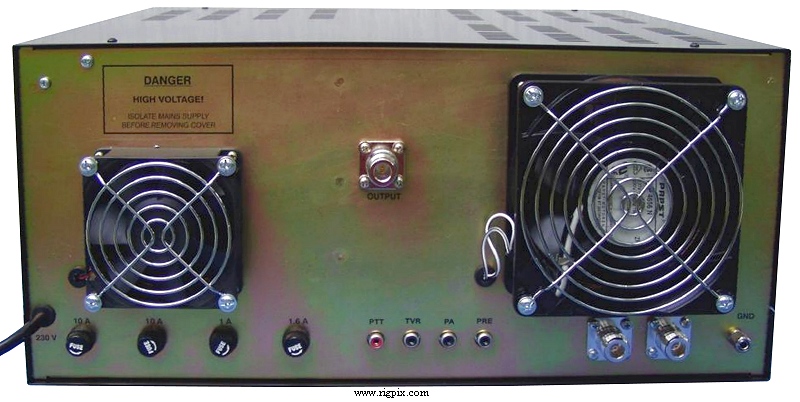

| Impedance / connectors: | 50 ohm / Three N-jacks |
| Dimensions (W*H*D): | 410*185*340 mm (16.1*7.3*13.4") |
| Weight: | 29 Kg (63.9 lb) |
| Manufactured: | Hungary, 2013-20xx (Discontinued) |
| Other: | |
| Related documents: |
User manual (160 KB)
One GS35B triode
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
