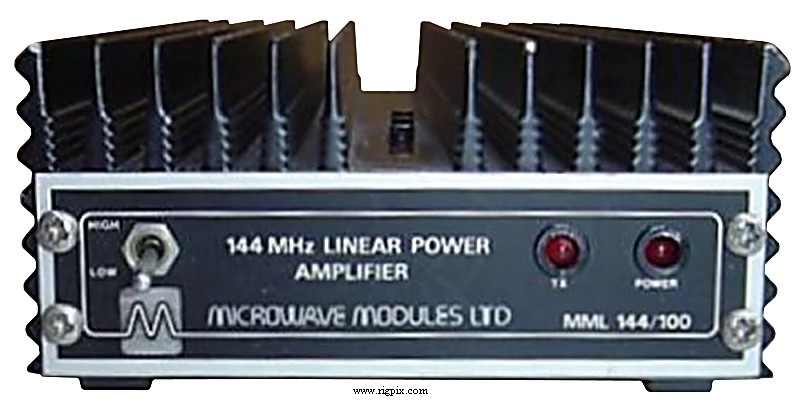

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 144-148 MHz (2 m) |
| Output power: | 100 W |
| Drive power: | Max 25 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 20 A |
| Impedance / connectors: | 50 ohm / Two ? |
| Dimensions (W*H*D): | 117*54*265 mm (4.6*2.13*10.43") |
| Weight: | 1.5 Kg (3.3 lb) |
| Manufactured: | England, 198x-198x (Discontinued) |
| Other: |
RF-VOX.
New price 1980 in England: £142.00.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
