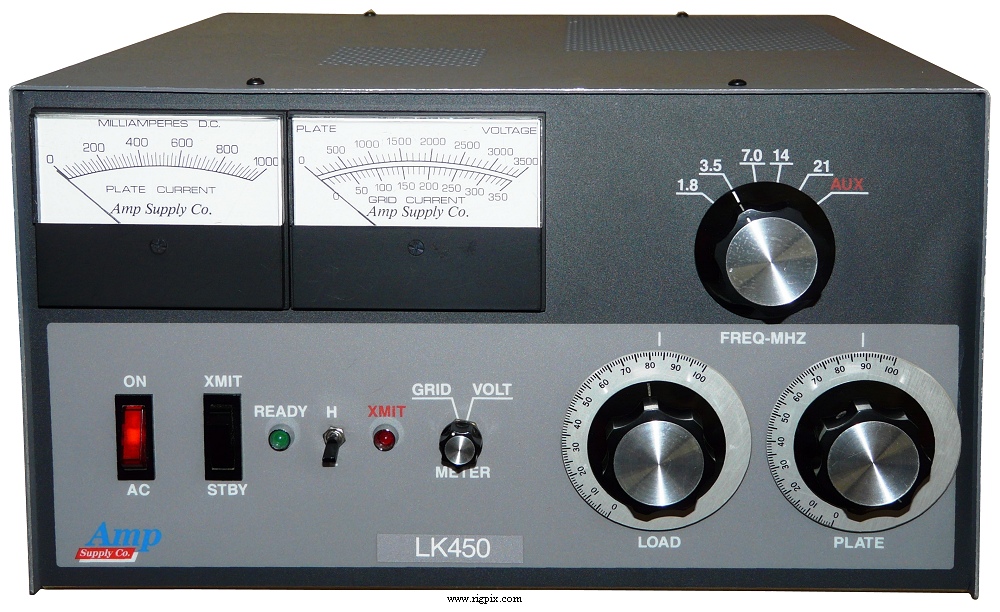

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): |
Export
10-160 m
USA
15-160 m
|
| Output power: |
AM: 300 W
SSB: 1000 W (PEP)
CW: 800 W
RTTY/SSTV: 600 W
|
| Drive power: |
SSB: 85 W (PEP)
CW: 80 W
SSTV/RTTY: 50 W
|
| Power supply: | Mains: 117 VAC 50/60 Hz or 234 VAC 50/60 Hz |
| Current drain / power consumption: | 20 A @ 117 VAC or 10 A @ 234 VAC |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 381*229*381 mm (15*9*15") |
| Weight: | 18.6 Kg (41 lb) |
| Manufactured: | USA, 198x-199x (Discontinued) |
| Other: | |
| Related documents: |
User manual (11.3 MB)
One 3-500Z power triode
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
