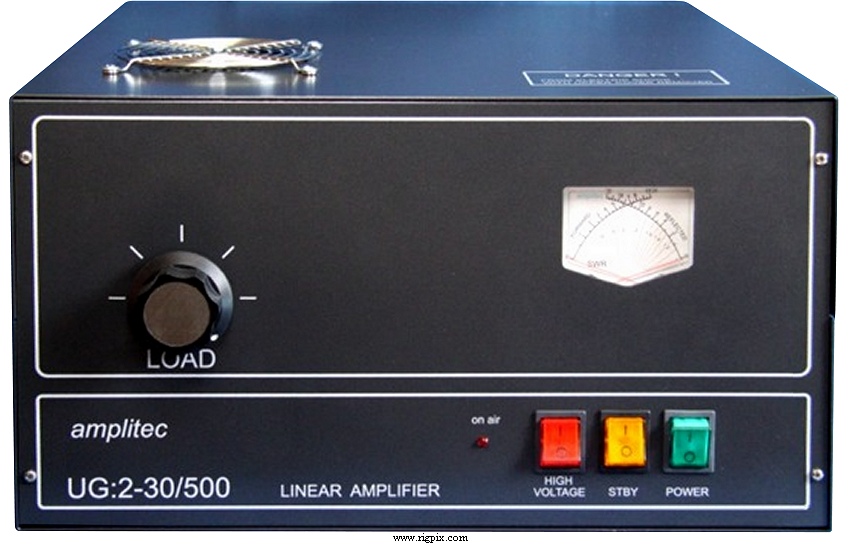

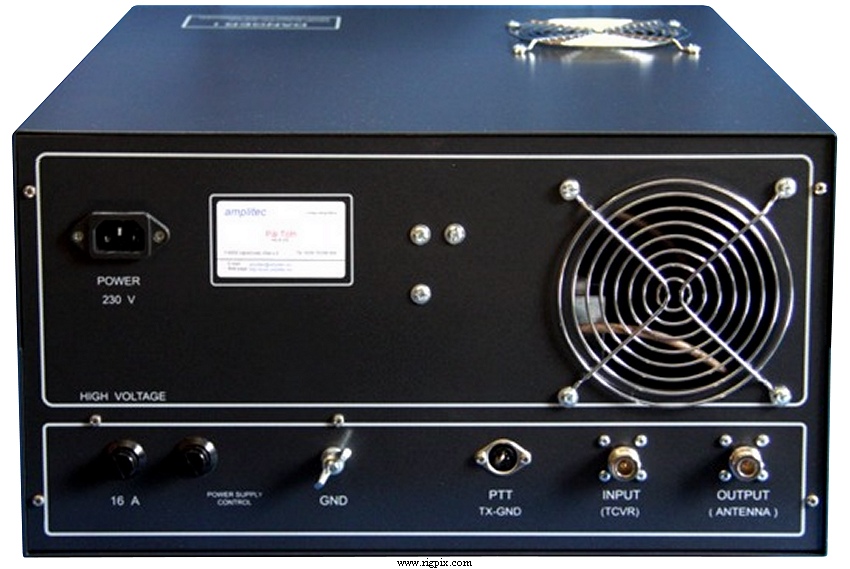

Amplitec UG:2-30/500
SPECIFICATIONS
| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 144-146 MHz (2 m) |
| Output power: | 20-500 W |
| Drive power: | 1-30 W |
| Power supply: | Mains: 230 VAC (3-pin IEC C14 connector) |
| Current drain / power consumption: | ? A |
| Impedance / connectors: | 50 ohm / Two N-jacks |
| Dimensions (W*H*D): | 400*215*450 mm (15.8*8.5*17.7") |
| Weight: | 18 Kg (39.7 lb) |
| Manufactured: | Hungary, 20xx-20xx |
| Other: |
One GI46b power triode
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
