| GENERAL |

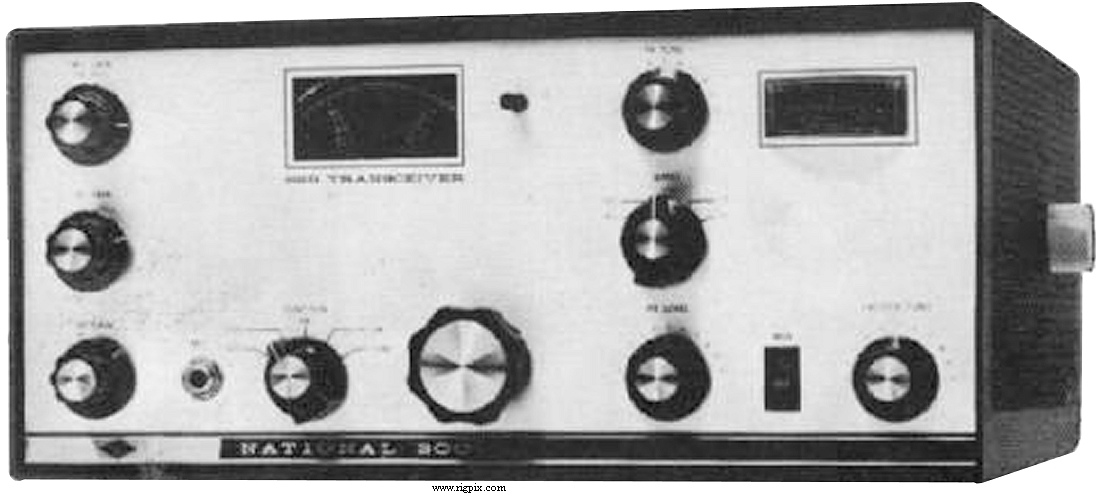

| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-80 m
RX: 10-80 m
|
| Tuning steps: | Analog / continuous |
| Frequency stability: |
1.5 KHz in first 30 minutes after 5 minute warmup
Long-term stability nominal 400 Hz in room ambient conditions
|
| Mode: | AM / SSB / CW |
| Channels / memory management: |
None
|
| Repeater shift / offset: | No |
| Power supply: | External PSU (9-pin Jones connector) |
| Current drain / power consumption: | RX: ? W
TX: Max ? W |
| Antenna impedance / connector: | 40-60 ohm / SO-239 |
| Dimensions (W*H*D): | 467*157*279 mm (18.38*6.19*11") |
| Weight: | 6.81 Kg (15 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 5.2 MHz
|
| Sensitivity: | SSB: 0.5 uV (10 dB S/N) |
| Selectivity: | 2.8 KHz (No reference) |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / No internal speaker |
| External speaker connector: | 3.2 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| AM: | 30 W |
| SSB (PEP): | 120 W |
| CW: | 120 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | Hi-Z / 3-pin (1/4"-jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1966-196x (Discontinued) |
| Additional info: | New price 1966 in the US: $359 |
| Related documents: |
User manual (1.6 MB)
RF finals: Two 6JB6
|
| Modifications and fixes: | |
| Reviews: | QST: December 1967, page 50 |
| Options / Accessories: |
AC-200
NCX-A
XCU-27
|
AC power supply
AC power supply and speaker
Plug-in crystal calibrator
|
|
