| GENERAL |

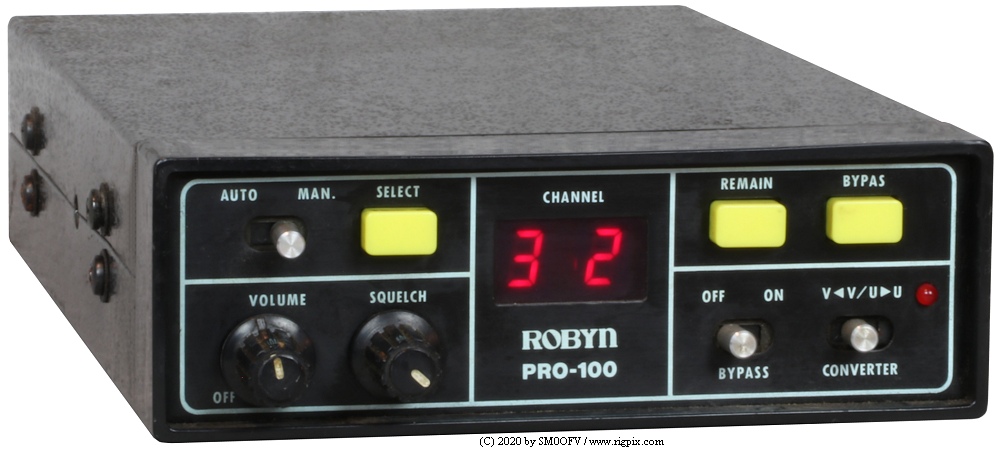

| Type: | VHF receiver/scanner |
| Frequency range: | 77.5125-79.9875 MHz (UHF converter option) |
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
100 preprogrammed
Channel lockout RAM storage with two LR44 battery backup
|
| Power supply: | 13.8 VDC (Barrel connector, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 120*40*190 mm (4.72*1.58*7.48") |
| Weight: | 775 g (1.71 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
