| GENERAL |

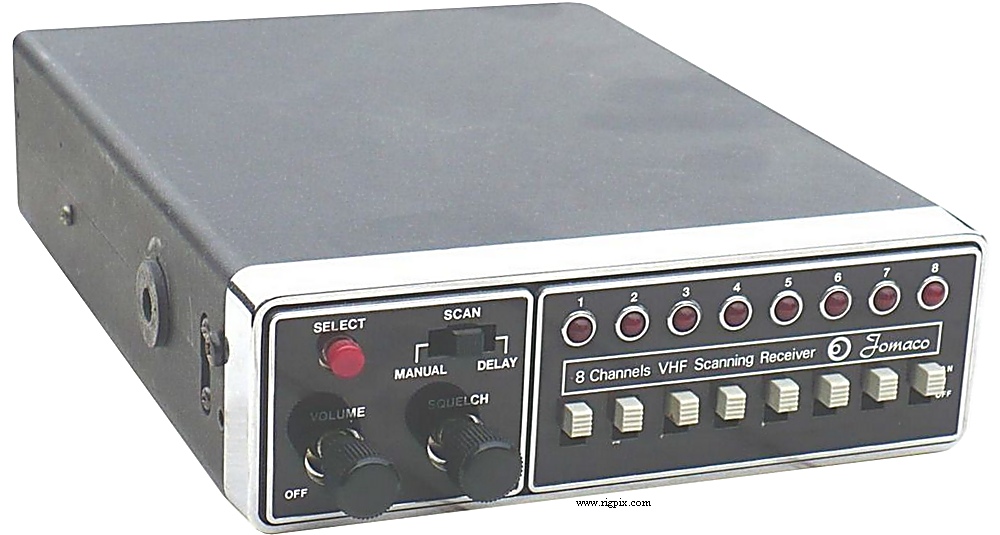

| Type: | VHF receiver/scanner |
| Frequency range: |
70-90 / 150-170 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | |
| Mode: | FM |
| Channels / memory management: |
8 regular
One XTAL per channel
|
| Power supply: | 12-14 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 140*45*185 mm (5.5*1.77*7.28") |
| Weight: | 990 g (2.18 lb), without mounting bracket |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: Murata SFM-455D
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-198x (Discontinued) |
| Additional info: |
RO-776SW - Switches and LEDs board
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
