| GENERAL |

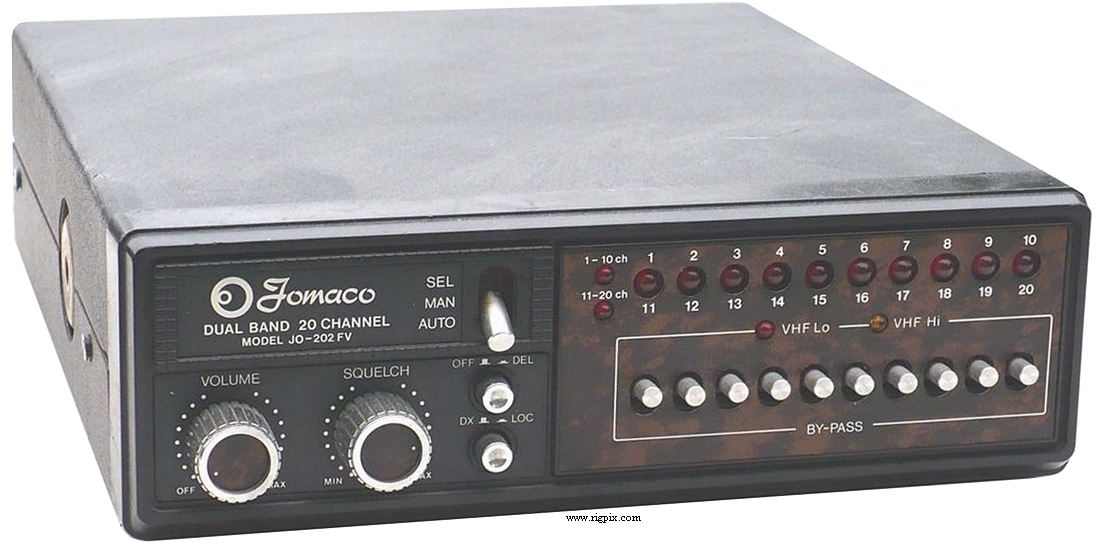

| Type: | VHF receiver/scanner |
| Frequency range: |
70-90 / 144-174 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | |
| Mode: | FM |
| Channels / memory management: |
20 regular
One XTAL per channel
|
| Power supply: | Mains: 220 VAC (Male 2-pin jack)
or 12-14 VDC (Male 2-pin jack) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | Local/DX sensitivity switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
