| GENERAL |
| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
30-54 / 140-180 / 410-514 MHz
|
| Tuning steps: | 5 KHz |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
16 regular

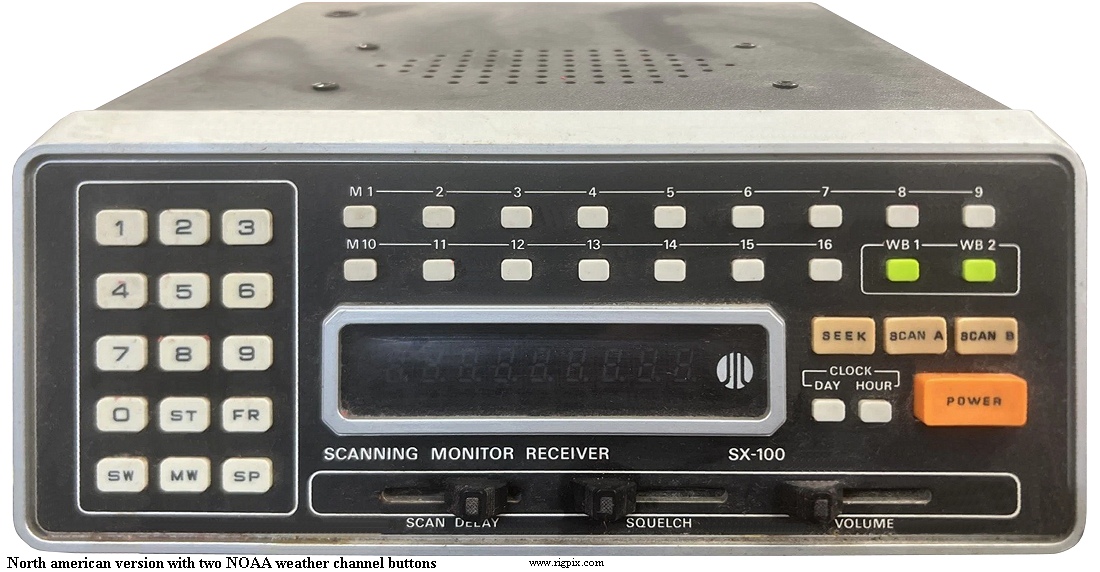

2 NOAA weather channels (North american version only)
|

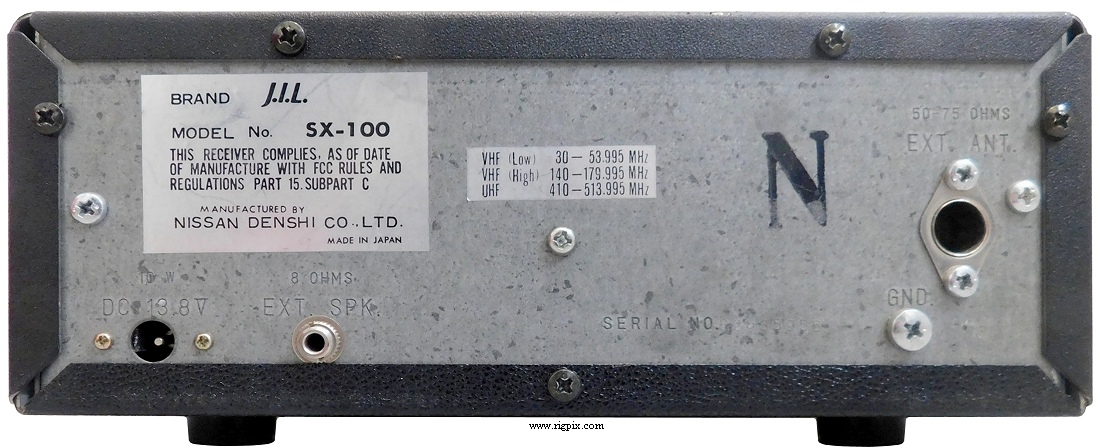

| Power supply: | 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) or top-mounted telescopic whip |
| Dimensions (W*H*D): | 202*76*236 mm (7.95*2.99*9.29") |
| Weight: | 2.41 Kg (5.31 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: Murata SFD455S
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Nissan Denshi Co.Ltd.), 1980-1982 (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (165 MB)
Service manual (744 KB)
AF amplifier: uPC576H
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
