| GENERAL |
| Type: | HF receiver |
| Frequency range: |
0.15-0.35 / 0.55-33 MHz in 6 bands:
0.15-0.35 MHz
0.55-1.4 MHz
1.4-3.5 MHz
3.5-9.5 MHz
9.5-21.0 MHz
21.0-33.0 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ? ppm |
| Mode: | AM / CW |
| Channels / memory management: |
None
|
| Power supply: | Mains: 95-130 / 195-250 VAC |
| Current drain / power consumption: | Max 100 W |
| Antenna impedance / connector: | 100 ohm / ?, balanced or unbalanced |
| Dimensions (W*H*D): | 483*266*380 mm (19.02*10.47*14.96") |
| Weight: | 35 Kg (77.16 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: |
AM: 5.5, 7.0 and 9.0 KHz (-6 dB), switchable
CW: 0.5, 1.0 and 2.0 KHz (-6 dB), switchable
|
| Image rejection: | >30 dB @ 30 MHz
>100 dB below 1.4 MHz |
| AF output power / speaker: | 3 W at ?% distortion / No internal speaker |
| External speaker connector: | 2.5 or 15 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | England, 195x-196x (Discontinued) |
| Additional info: |

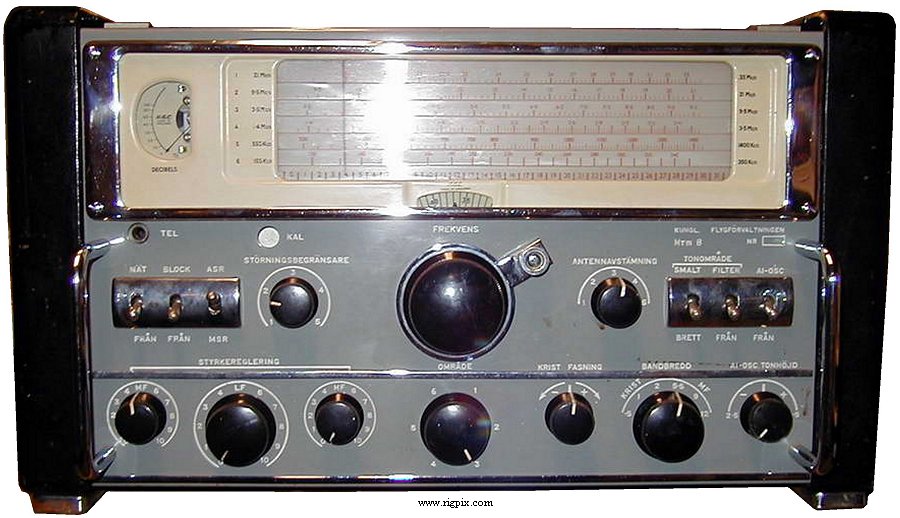

Basically the same radio as G.E.C. BRT-400, but with a swedish
front panel and modified for the swedish air force.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
BRT-401
|
12 VDC power supply
|
|
