Concorde Mark II Pro 20

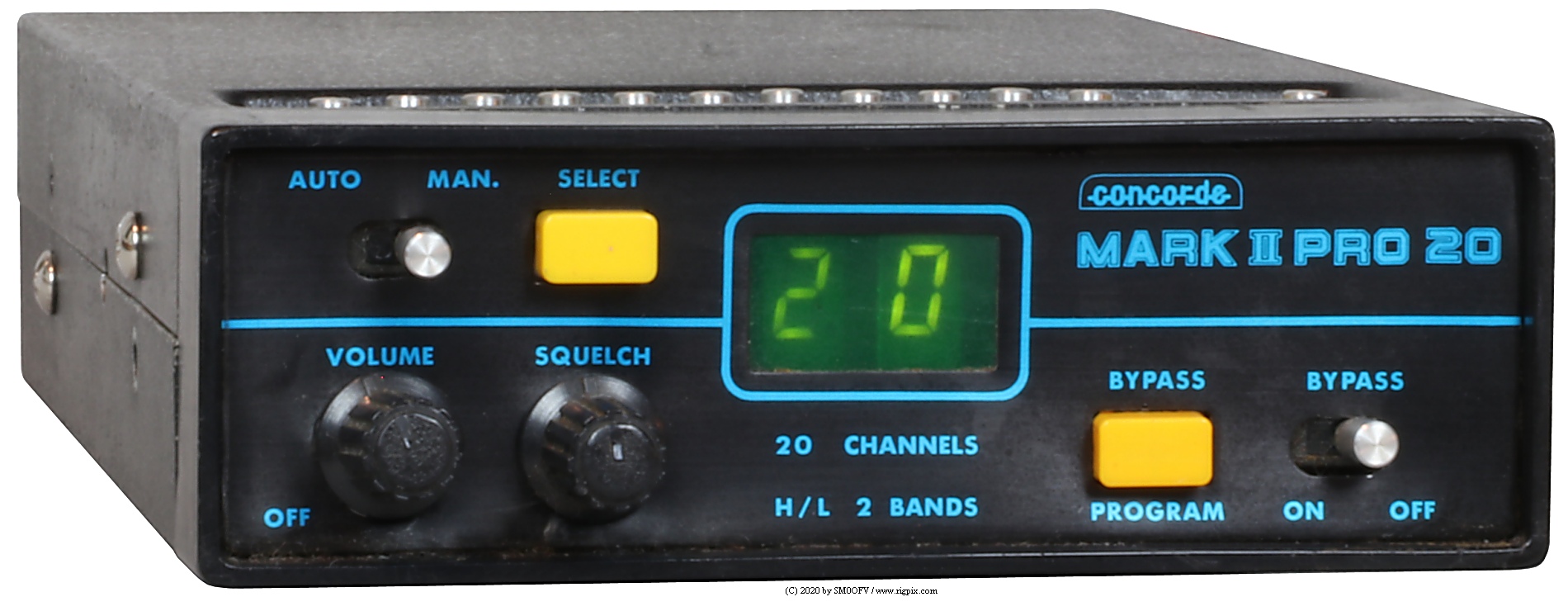

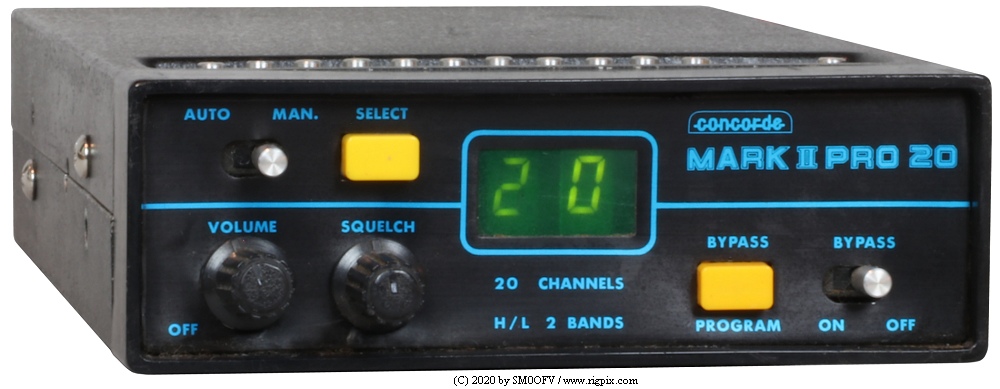

A picture of Concorde Mark II Pro 20

SPECIFICATIONS

GENERAL
Type:VHF receiver/scanner
Frequency range:76.9875-88.9875 / 160.1875-172.1875 MHz
Tuning steps:Channelized
Binary programming in 12.5 KHz increments
Frequency stability:? ppm
Mode:FM
Channels / memory management: 20 regular @ 8 channels per second
Power supply:13.8 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50-75 ohm / DIN41585 (Motorola)
Dimensions (W*H*D):120*40*191 mm (4.72*1.58*7.52")
Weight:0.9 Kg (1.98 lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:1 uV (12 dB SINAD)
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / 8 ohm
External speaker connector:3.5 mm, 4-8 ohm




MISCELLANEOUS
Manufactured:Japan, 198x-198x (Discontinued)
Additional info:
Related documents: PLL: PLL02A
FM-IF: MC3357P
Modifications and fixes:
Reviews:
Options / Accessories:
- -

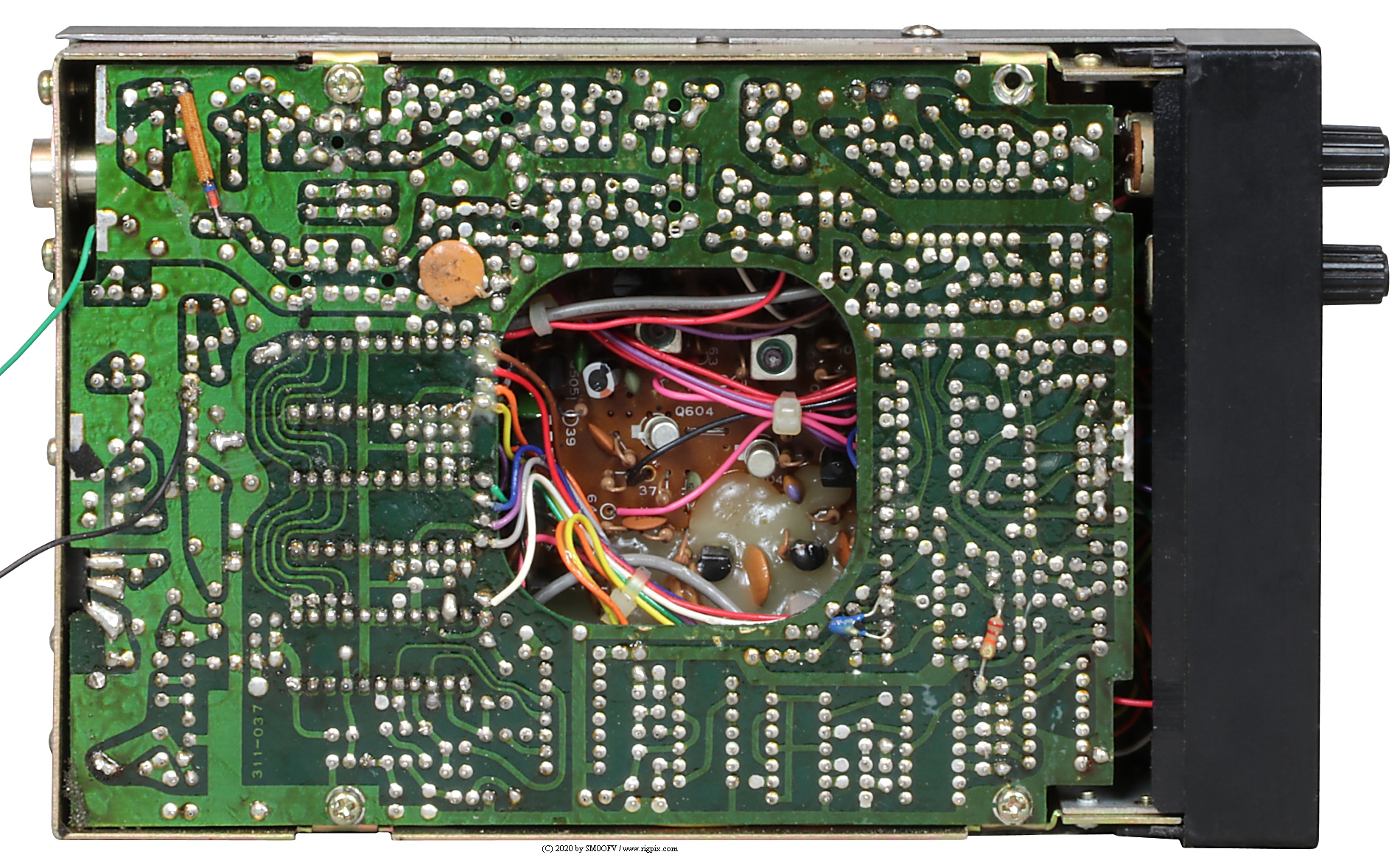

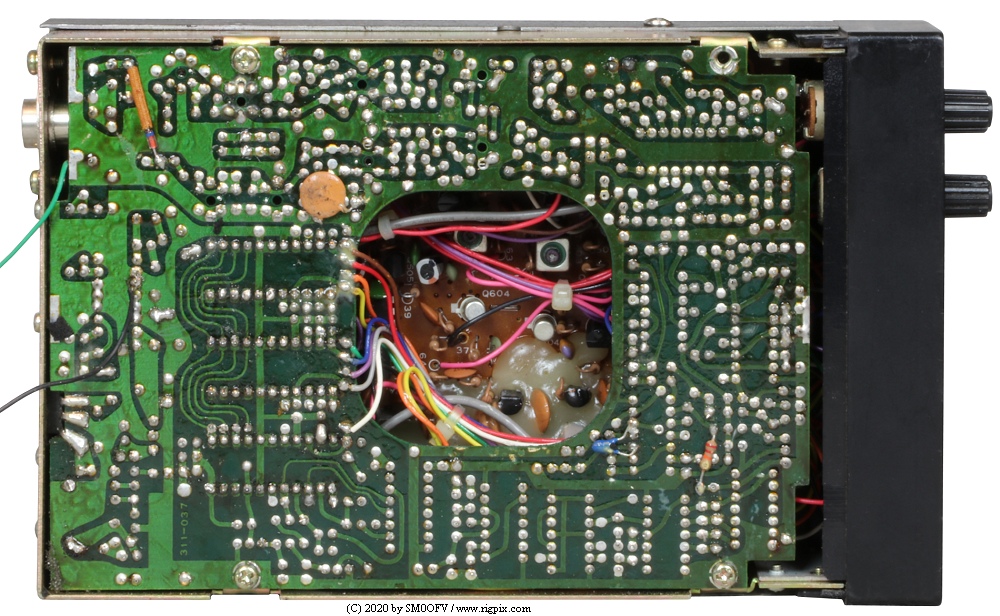

An inside picture of Concorde Mark II Pro 20

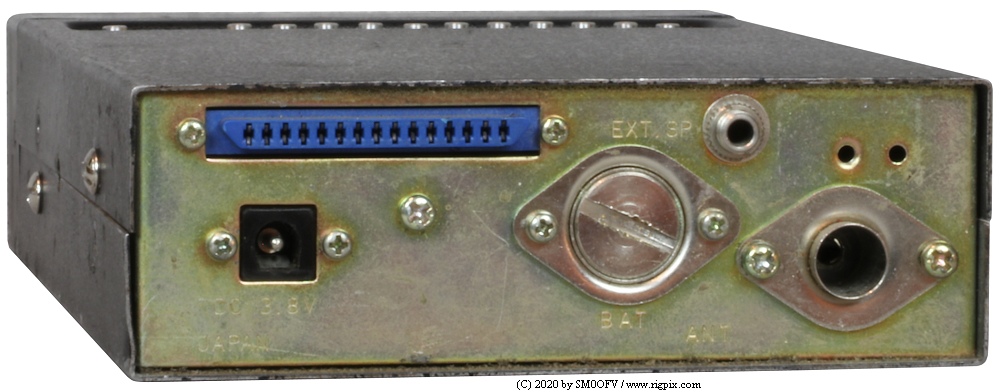

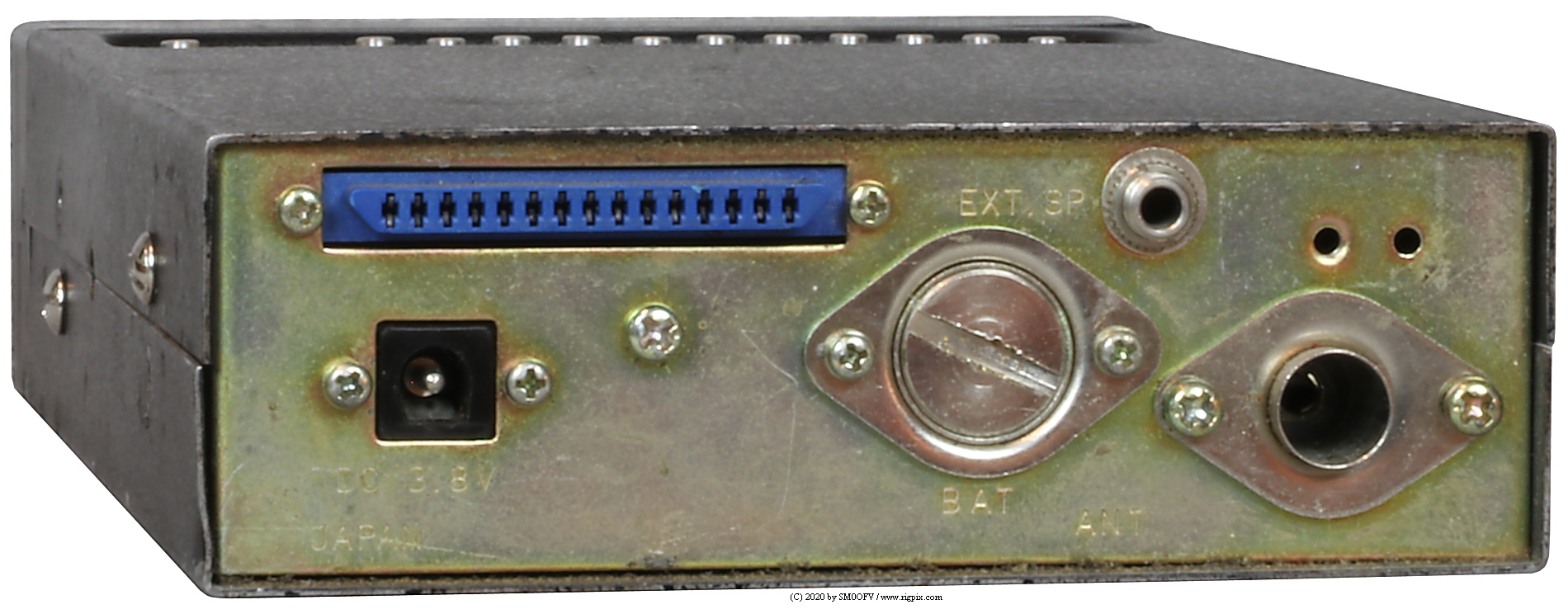

A rear picture of Concorde Mark II Pro 20
