| GENERAL |

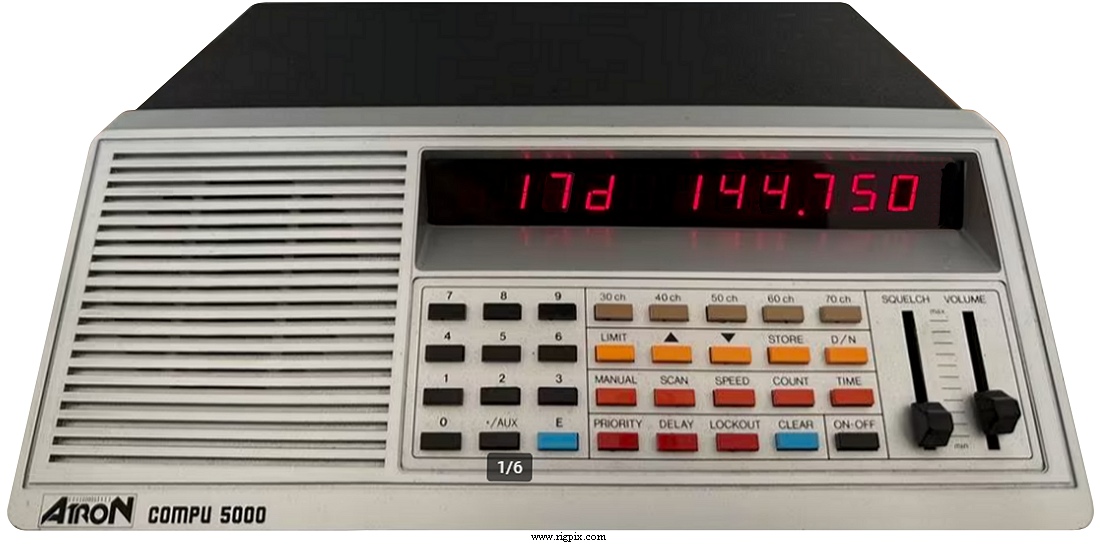

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
60-89 / 108-138 / 140-179 / 380-519 MHz
|
| Tuning steps: | 12.5 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
70 regular
RAM storage with two LR6 / AA backup batteries
|

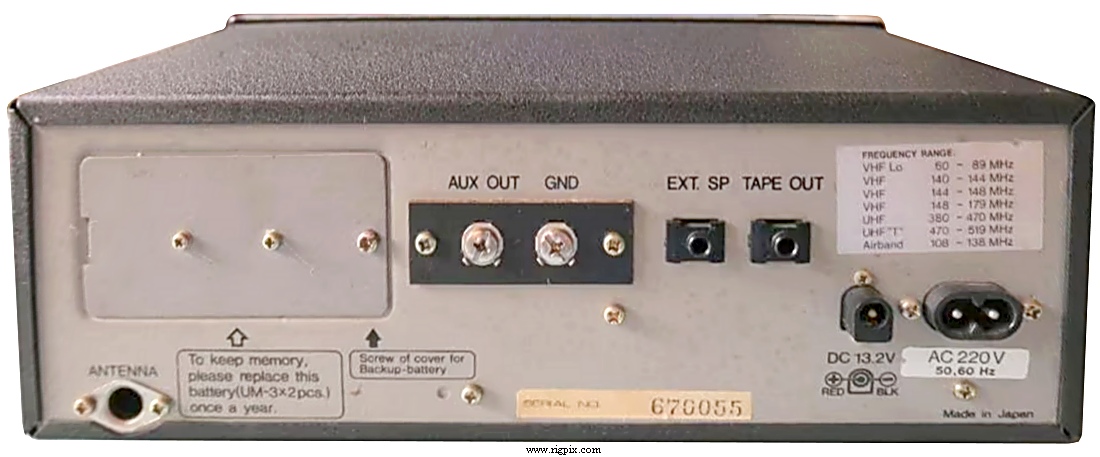

| Power supply: | Mains: 220 VAC (Male 2-pin jack)
or 13.2 VDC (Male barrel jack, canter positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 270*95*230 mm (10.63*3.74*9.06") |
| Weight: | 3.1 Kg (6.84 lb) |
| Other features: | Clock. Tape out jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: |
FM-IF: TA7130P
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
