Albrecht AE-66M

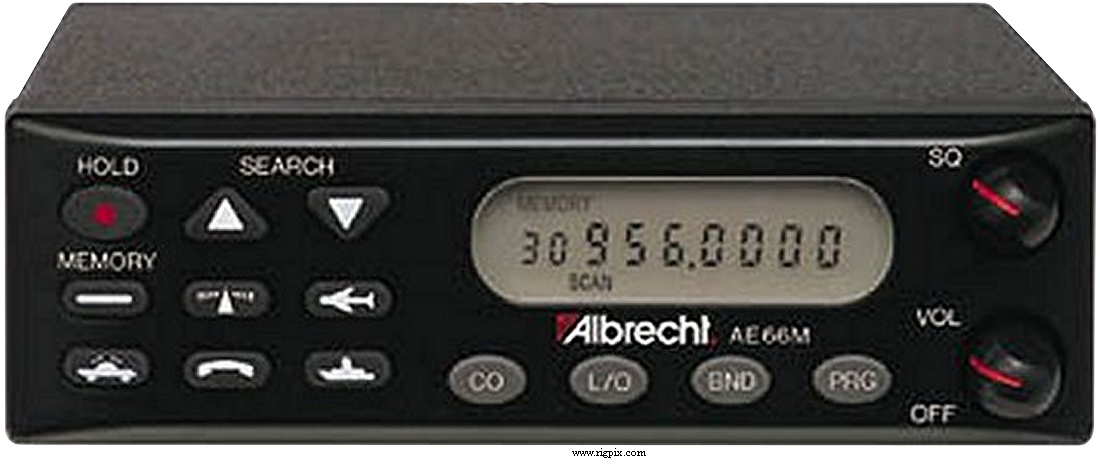

A picture of Albrecht AE-66M

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range: 66-88 / 108-174 / 406-512 / 806-960 MHz
Tuning steps:5 / 12.5 KHz
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 50 regular
Power supply:13.8 VDC
Current drain / power consumption:Max 300 mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):132*42*177 mm (5.2*1.65*6.97")
Weight:750 g (1.65 lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.85 MHz
2nd IF: 450 KHz
Sensitivity: FM: <1 uV (12 dB SINAD)
Selectivity:18 KHz (-6 dB)
40 KHz (-50 dB)
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:(By Uniden), 200x-20xx (Discontinued)
Additional info: This is sort of a european version of Uniden Bearcat BC-700A
Related documents: Manual (296 KB)
Schematics (469 KB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
