| GENERAL |

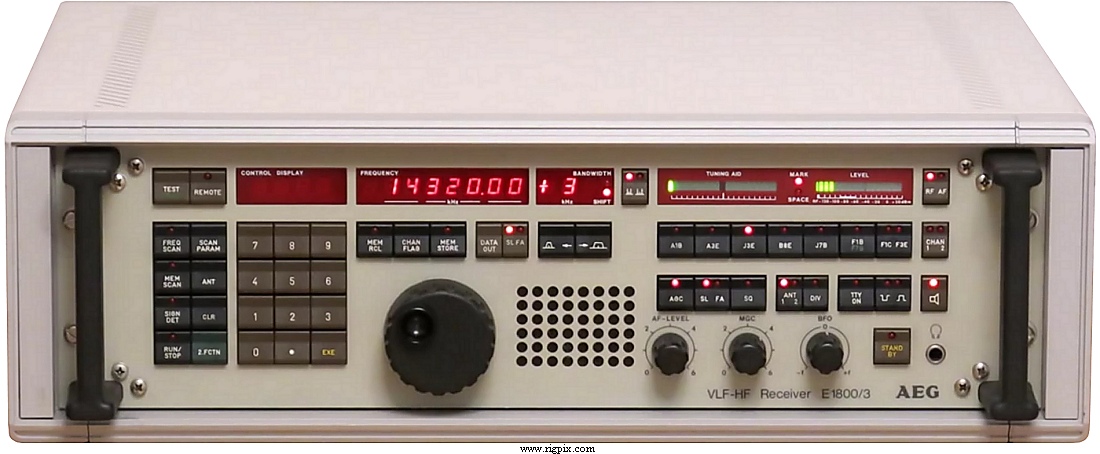

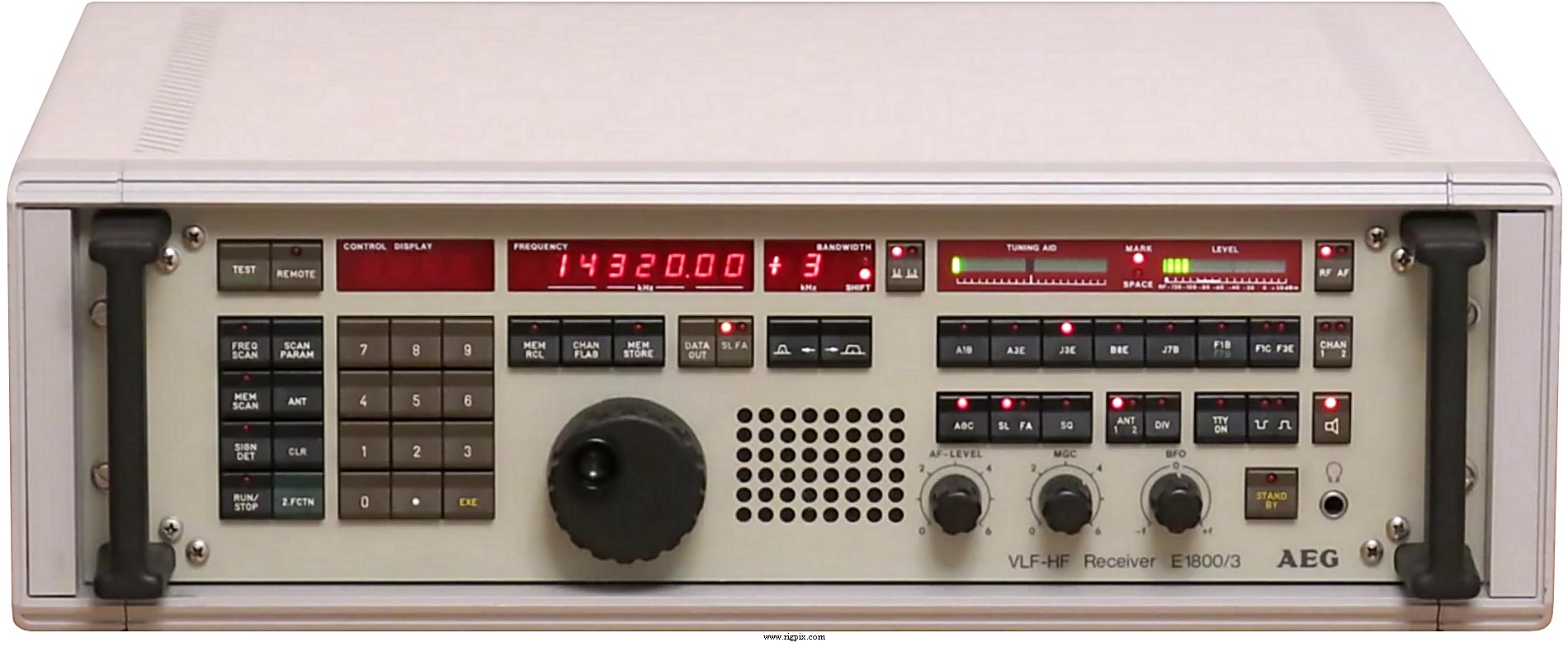

| Type: | HF receiver |
| Frequency range: |
0.01-30 MHz
|
| Tuning steps: | 10 Hz |
| Frequency stability: | ±0.3 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode: | Basic receiver: AM / SSB / VSB / CW / RTTY
Optional: ISB, FSK, FAX, 4-FSK and FM |
| Channels / memory management: |
100 regular @ 3 or 140 channels per second (Depending on option)
RAM storage with lithium battery backup
|
| Power supply: |
Mains: 110 / 220 VAC ±15% (3-pin IEC C14 connector)
Also 21.5-30 VDC option
|
| Current drain / power consumption: | Basic receiver: 40 W @ mains or 1.5 A @ 24 VDC
Fully equipped: 70 W @ mains or 2.5 A @ 24 VDC |
| Antenna impedance / connector: |
0.01-1.6 MHz: 50 ohm / N-jack
1.6-30 MHz: 50 ohm / N-jack
|
| Dimensions (W*H*D): | 465*132*433 mm (18.3*5.2*17") |
| Weight: | 15 Kg (33.1 lb), Basic receiver |
| Other features: |
200 KHz IF output (10.7 MHz, 30 and 525 KHz options).
10 MHz reference input.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (Standard)
1st IF: 42.2 MHz
2nd IF: 200 KHz
|
| Sensitivity: | 0.2 uV (No S/N reference) |
| Squelch sensitivity: | 0.1 uV (Threshold)
1 V (Tight) |
| Noise figure: | |
| Selectivity: |
Up to 7 mechanical IF filters could be fitted, ranging
from 100 Hz to 6 KHz.
|
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | Line out: 600 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | West Germany, 1987-1989 (Discontinued) |
| Additional info: |
Modular design with many options.
Improved frontend over the previous version.
New price 1987 in W.Germany: DM 40000 to 80000 + VAT (Depending on options)
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
Option 01
Option 02
Option 03
Option 04
Option 05
Option 06
Option 07
Option 08
Option 09
Option 10
Option 11
Option 12
Option 13
Option 14
Option 15
Option 16
BG 1800
FSA 1550/3
PSG 1700/2
|
DE 1710/2, ISB demodulator
TD 1710, TELEX demodulator
?
TZ 1710, Extra TELEX demodulator
?
ES 1700/2, Preselector
BA 1700, Preselctor
AD 1710, Antenna diversity unit
FU 1800, Frequency converter (IF output)
ED 1710, Receiver diversity unit
BT 1800, Self test
NB 1800, Mains and DC power supply
SER 1810, RS-232C interface
IEC interface (IEC 1810/IEEE 488)
IEC interface (IEC 1810/IEC 625)
PSE 1800, Parallel interface
Remote control unit
TTY analyzer unit
Panoramic display unit (Up to 5 MHz span)
|
|
