| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10 / 11 / 12 / 15 / 17 / 20 m + MARS
RX: 14-30 MHz
|
| Tuning steps: | 10 / 100 Hz
1-50 kHz selectable in 1 kHz steps
|
| Frequency stability: | ±0.5 ppm @ -10° to +60°C (14° to 140°F) |
| Mode: | AM / FM / SSB / CW / Data |
| Channels / memory management: |
None
|
| Repeater shift / offset: | -100 kHz |
| Power supply: | 10-16.8 VDC (Four internal 18650 Li-Ion batteries) |
| Current drain / power consumption: | RX: 45 mA @ 13.8 VDC (With signal)
TX: Max 1.6 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / Phono (RCA)
or built-in telescopic whip (1.42 m / 56") |
| Dimensions (W*H*D): | 70*200*40 mm (2.8*7.9*1.6") |
| Weight: | 500 g (1.1 lb), with internal battery and antenna |
| Other features: |
Built-in ATU for the telescopic whip. Automated FT8 CQ-call over all

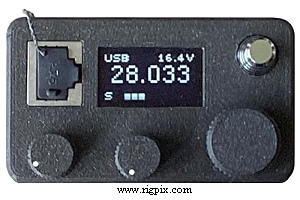

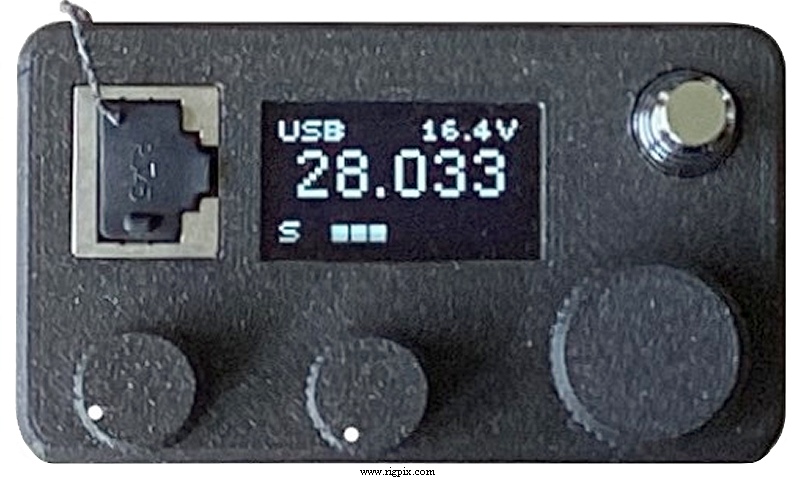

bands for easy and fast propagation check. The OLED display can be
rotated to suit any wearing position.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SDR I/Q
|
| Sensitivity: | Better than 1.0 uV (12 dB S/N) |
| Squelch sensitivity: | 0.4 uV (Threshold) |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 800 mW at 10% distortion / 8 ohm |
| External speaker connector: | RJ45 |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Up to 10 W @ 13.8 VDC with internal Li-Ion batteries
|
| Modulation system: | SDR I/Q |
| Max FM deviation (Factory set): | ±2.2 kHz |
| Spurious emissions: | Better than -43 dB |
| Microphone impedance / connector: | 2.2 Kohm (Electret) / RJ45 |
| Microphone input level: | 10 mVpp |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Germany, 2024-202x |
| Additional info: |
Also available in olive-green and orange.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ZFX-250
ZFX-320
ZFX-430
ZFX-1000
ZFX-1200
ZFX-3000
|
Speaker-microphone with rotary clip
Carrying pouch with Molle system, grey-green
Spare Li-Ion battery pack. 14.4 V, 3000 mAh (43 Wh)
Spare telescopic antenna (1.42 m / 56")
Tactical slide-on blade antenna (82 cm / 32")
External wide-band tune-free antenna 20-30 MHz
|
|
