| GENERAL |

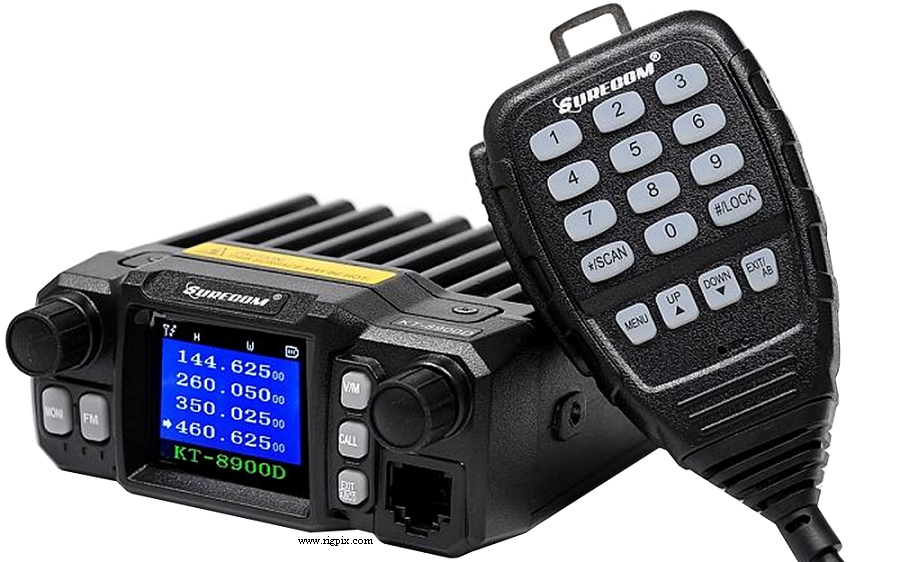

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 2 m / 1.25 m / 70 cm (136-174 / 220-260 / 350-390 / 400-480 MHz)
RX: 136-174 / 220-260 / 350-390 / 400-480 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM / NFM |
| Channels / memory management: |
200 regular
|
| Repeater shift / offset: | Freely programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 103*47*126 mm (4.06*1.85*4.96") |
| Weight: | 448 g (15.8 oz) |
| Other features: |
CTCSS/PL and DCS. 5-tone and 2-tone selcall. DTMF. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
FM: 0.25 uV (No reference)
NFM: 0.35 uV (No reference)
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| 2 m: | Max 25 W |
| 1.25 m: | Max 25 W |
| 350 MHz: | Max 20 W |
| 70 cm: | Max 20 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin modular |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2016-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
