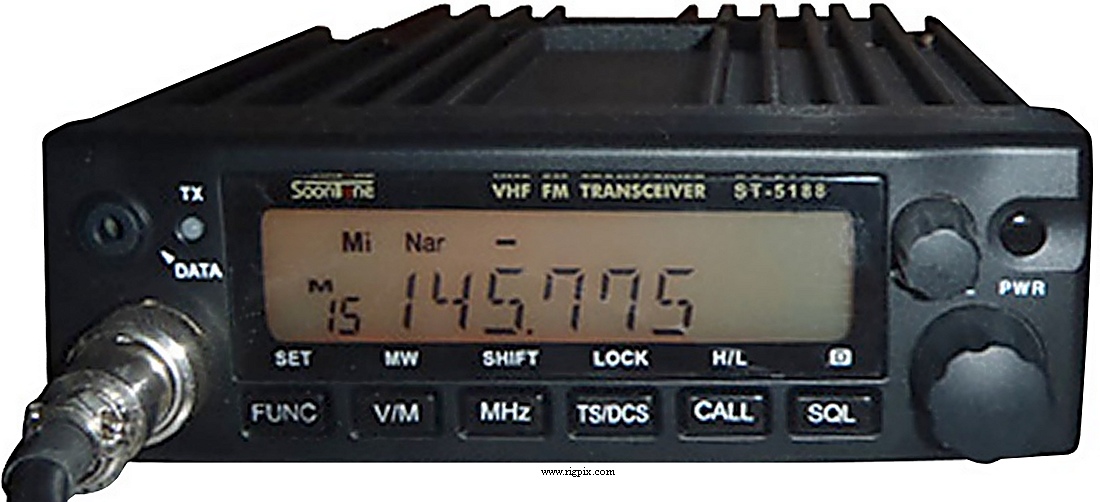

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 2 m (136-174 MHz)
RX: 136-174 MHz (118-174 MHz on some verions)
|
| Tuning steps: | 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: FM / NFM (also AM on some versions) |
| Channels / memory management: |
100 regular
1 call
|
| Repeater shift / offset: | ±? |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 400-600 mA
TX: Max 9 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 145*47*190 mm (5.71*1.85*7.48") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: |
CTCSS/PL and DCS. DTMF. 1750 Hz tone call. PC-programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: |
FM
12 KHz (-6 dB)
28 KHz (-60 dB)
NFM
6 KHz (-6 dB)
14 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W @ 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 2 pin |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 10 W | 5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 8 pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 200x-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
