| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: |
33-47 (30-50) / 144-173 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
8 regular
One XTAL per channel
|

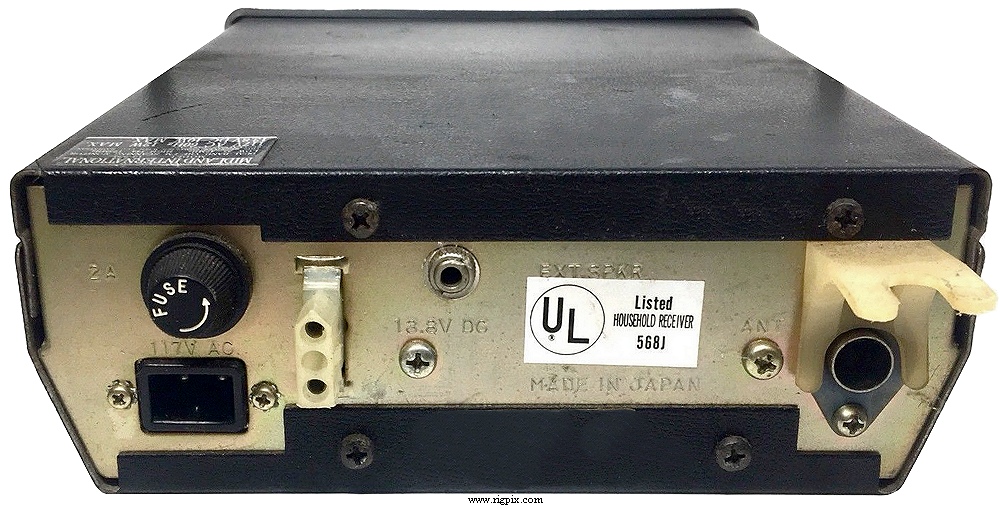

| Power supply: | Mains: 117 VAC (Male 2-pin jack)
or 13.8 VDC |
| Current drain / power consumption: | Less than 12 W @ mains
Less than 725 mA @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |

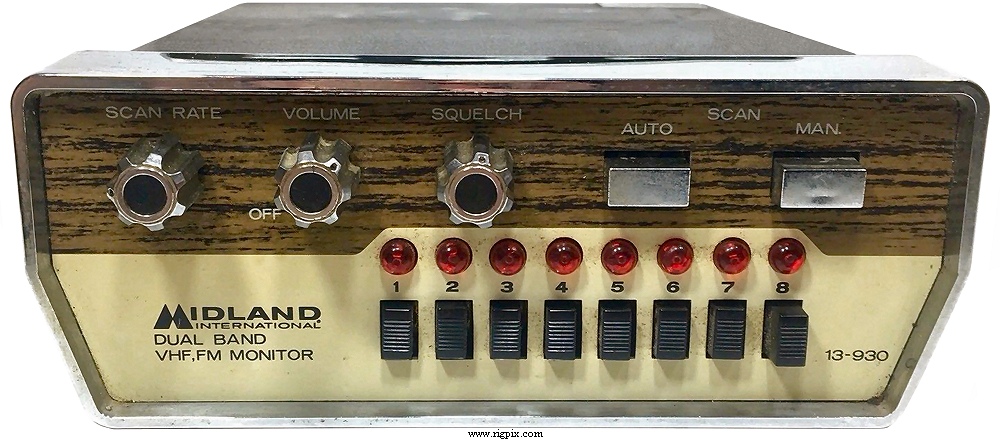

| Other features: | Adjustable scan rate. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (20 dB quieting) |
| Squelch sensitivity: | 0.4 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1973-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
