| GENERAL |

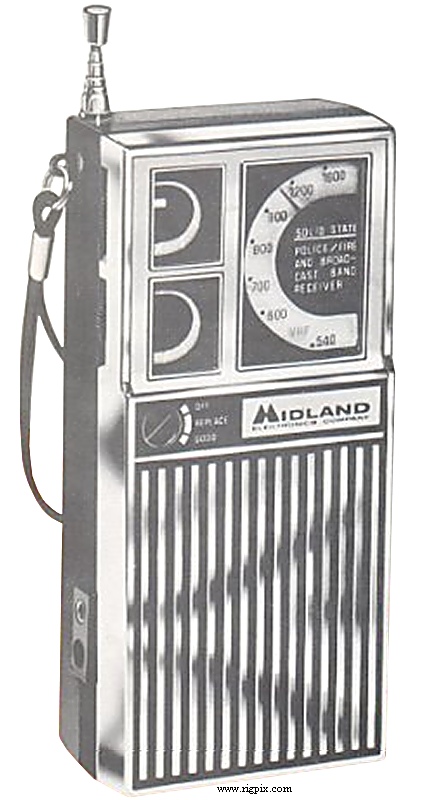

| Type: | HF / VHF receiver |
| Frequency range: |
MW: 0.54-1.6 MHz
VHF: 148-175 MHz
|
| Tuning steps: | VFO (MW)
Channelized (VHF) |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
3 regular
One XTAL per channel
|
| Power supply: | 9 VDC (One 6LR61 / MN1604 battery) |
| Current drain / power consumption: | 13 mA (Squelched) |
| Antenna impedance / connector: | ?VHF: Fixed telescopic whip |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (MW)
IF: 455 KHz
? conversion superheterodyne (VHF)
|
| Sensitivity: | VHF: 0.5 uV (No SINAD reference) |
| Squelch sensitivity: | VHF: 2 uV (Threshold) |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 250 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
