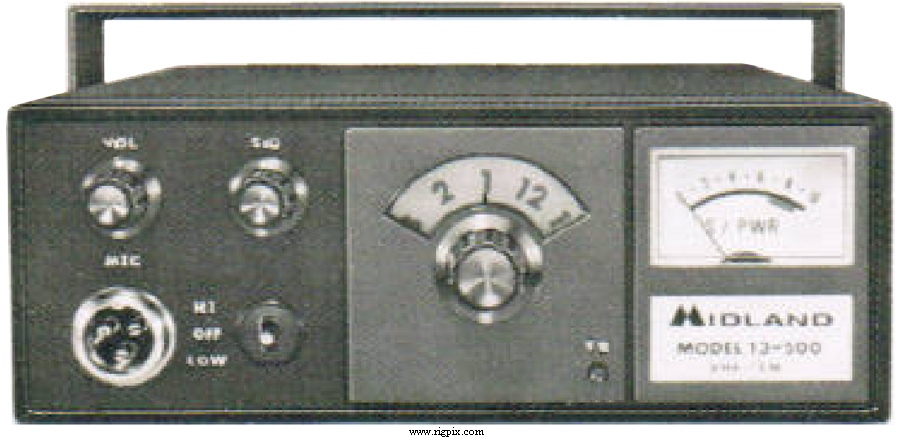

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 144-148 MHz
RX: 144-148 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
12 regular
Two XTALs per channel (HC-25U)
|
| Repeater shift / offset: | Depending on XTALs |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 150 mA (Average)
TX: Max 3.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 162*57*225 mm (6.38*2.24*8.86") |
| Weight: | 2 Kg (4.41 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (12 dB S+N/N) |
| Squelch sensitivity: | Less than 0.3 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 10 KHz (-6 dB)
24 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance phase modulation |
| Max FM deviation (Factory set): | ±5 KHz (Adjustable between ±3 to 16 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 10 Kohm / 3-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1973-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.6 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
