Yaesu MH-48A6J

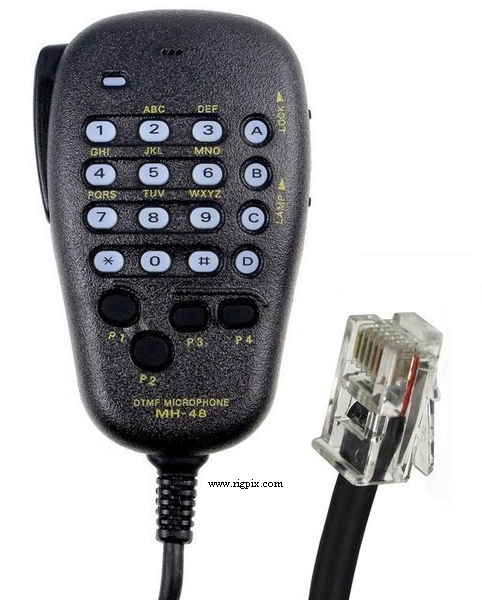

A picture of Yaesu MH-48A6J


Type:Electret condenser hand microphone
Frequency response:? Hz (-6 dB)
Sensitivity:? dB (? Hz, ? cm)
Output level:? mV
Output impedance / connector:~2 Kohm / 6-pin modular
Power supply:8 VDC, supplied by radio
Current drain:? mA
Dimensions (W*H*D):58*95*39 mm (2.28*3.74*1.54")
Weight:143 g (5.04 oz)
Manufactured:Japan, 1999-20xx
Other: Backlit DTMF pad. Four function buttons, a lock switch
and backlight on/off
Related documents:Schematic diagram (50 KB)
Modifications and fixes:
Applicable radios:Many
