Daiwa MD-400

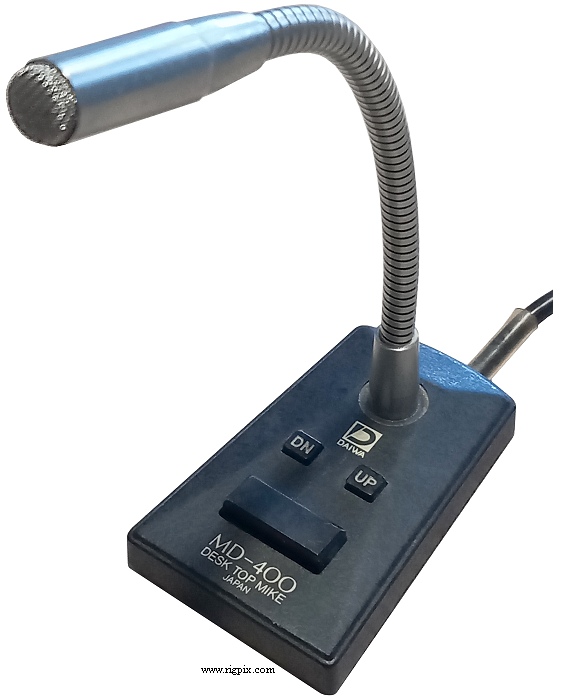

A picture of Daiwa MD-400


Type:Amplified desk microphone
Frequency response:200-7000 Hz (-6 dB)
Sensitivity:-44 dB (1000 Hz, ? cm)
Output level:? mV
Output impedance / connector:600 ohm / Open end
Power supply:1.5 VDC (LR44 battery)
Current drain:? uA
Dimensions (W*H*D):60*230*90 mm (2.36*9.06*3.54")
Weight:300 g (10.6 oz)
Manufactured:Japan, 19xx-19xx (Discontinued)
Other: Up/down buttons
This appears to be a rare microphone, and probably the
only one under the Daiwa brand.
Related documents:
Modifications and fixes:
Applicable radios:
