| GENERAL |

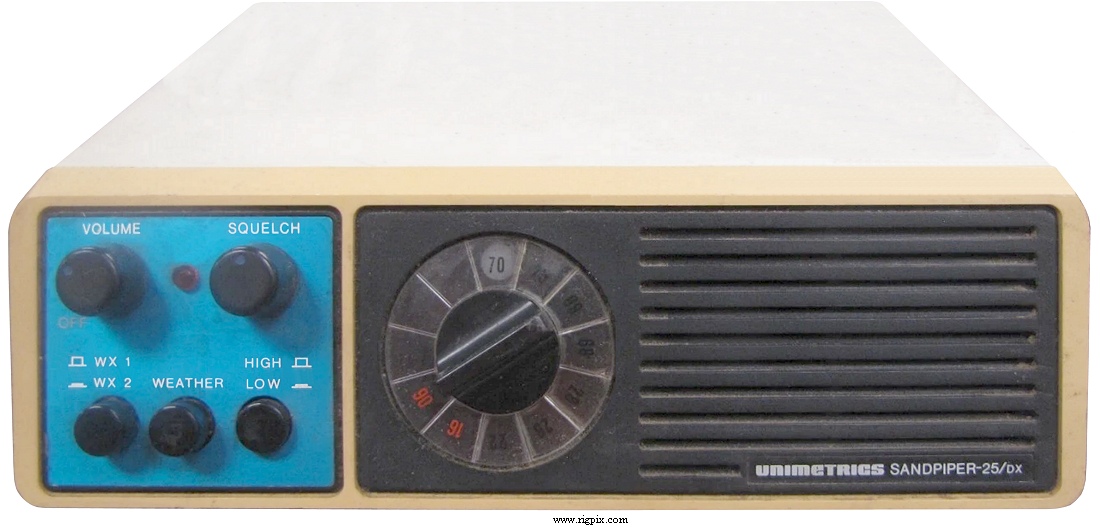

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156-157.5 MHz
RX: 156-163 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.001% @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
12 regular
2 NOAA weather channels
XTAL controlled
|
| Duplex shift / offset: | |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: Max 800 mA
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Squelch sensitivity: | Less than 10 dB noise quieting level (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -80 dBc |
| Microphone impedance / connector: | 600-2000 ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
