| GENERAL |
| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156-158 MHz
RX: 156-163 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.0005% @ -20 to +50°C (-4 to +122°F) |
| Mode: | FM |
| Channels / memory management: |
Australia
55 international channels
USA
40 channels
5 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.6-1.2 A
TX: Max 4.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*58*250 mm (7.25*2.25*9.84") |
| Weight: | 2.04 Kg (4.5 lb) |

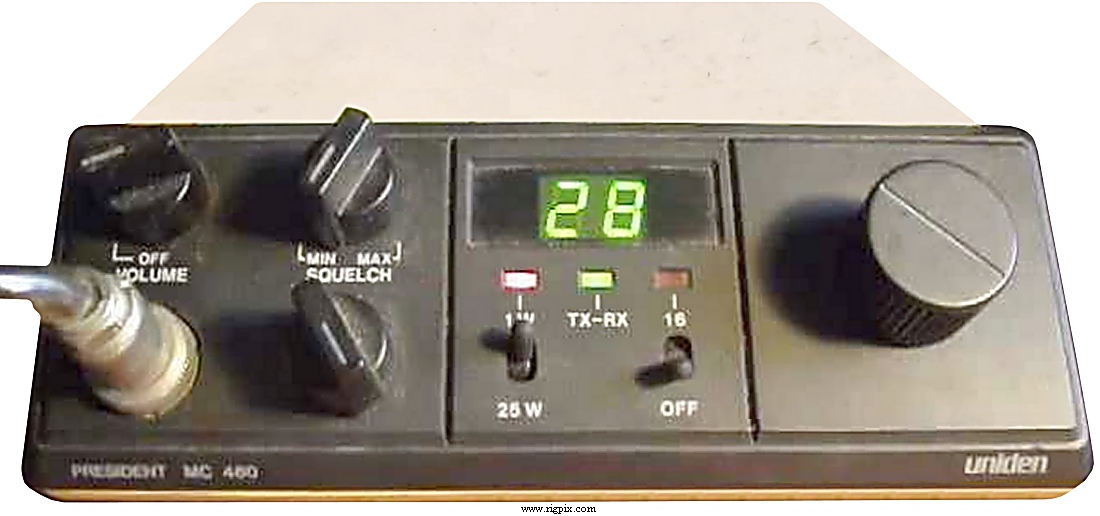

| Other features: | Channel 16 switch. Dimmer. Reversible front panel. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.2 uV (Threshold)
2 uV (Tight) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1983-198x (Discontinued) |
| Additional info: |

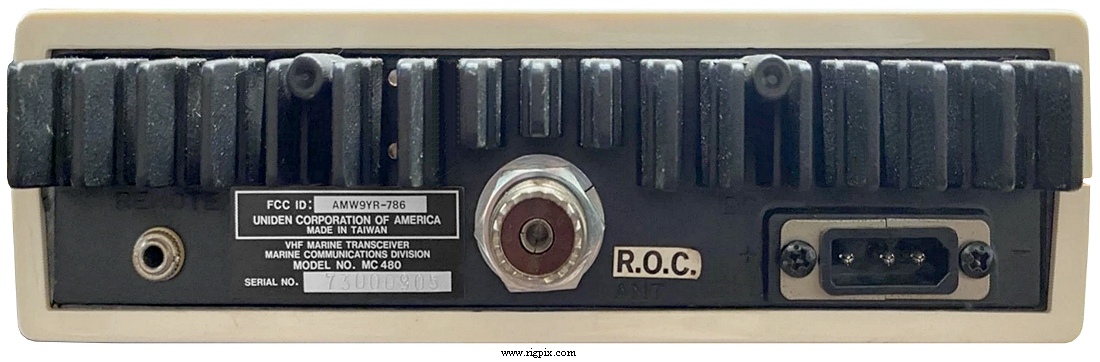

FCC ID: AMW9YR-786
|
| Related documents: | User manual (3.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
