| GENERAL |

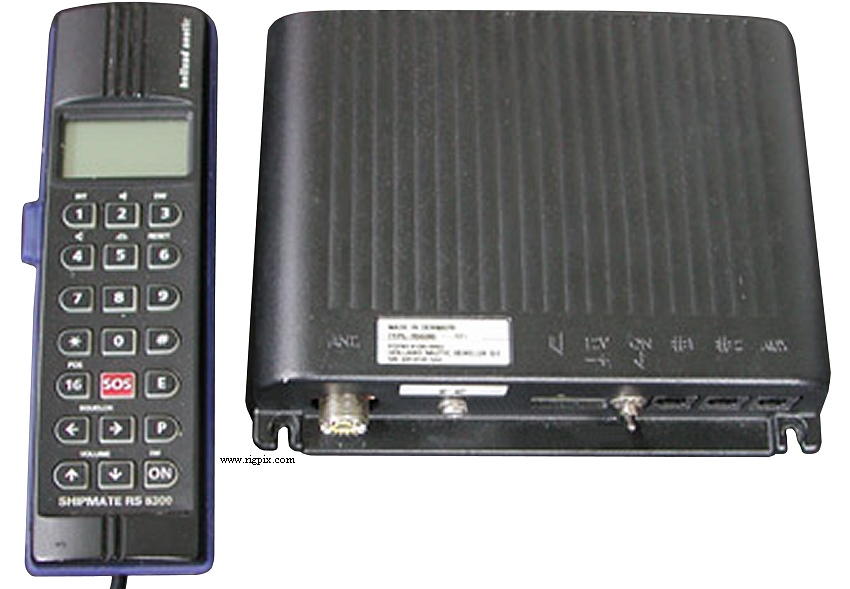

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 153.9-163.1 MHz
RX: 153.9-163.1 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
International and US channels
16 private
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 10.8-15.6 VDC |
| Current drain / power consumption: | RX: 150 mA (Squelched)
TX: Max 5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Main unit: 184*42*155 mm (7.2*1.6*6")
Handset: 60*192*27 mm (2.3*7.5*1) |
| Weight: | Main unit: 1 Kg (2.2 lb)
Handset: 250 g (8.8 oz) |
| Other features: | Class C DSC. Channel 16 button. Dual watch. Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / ?-pin |
| Microphone input level: | 22 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 199x-20xx (Discontinued) |
| Additional info: |
The Shipmate brand was later marketed by Simrad.
|
| Related documents: | User manual (649 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
