| GENERAL |

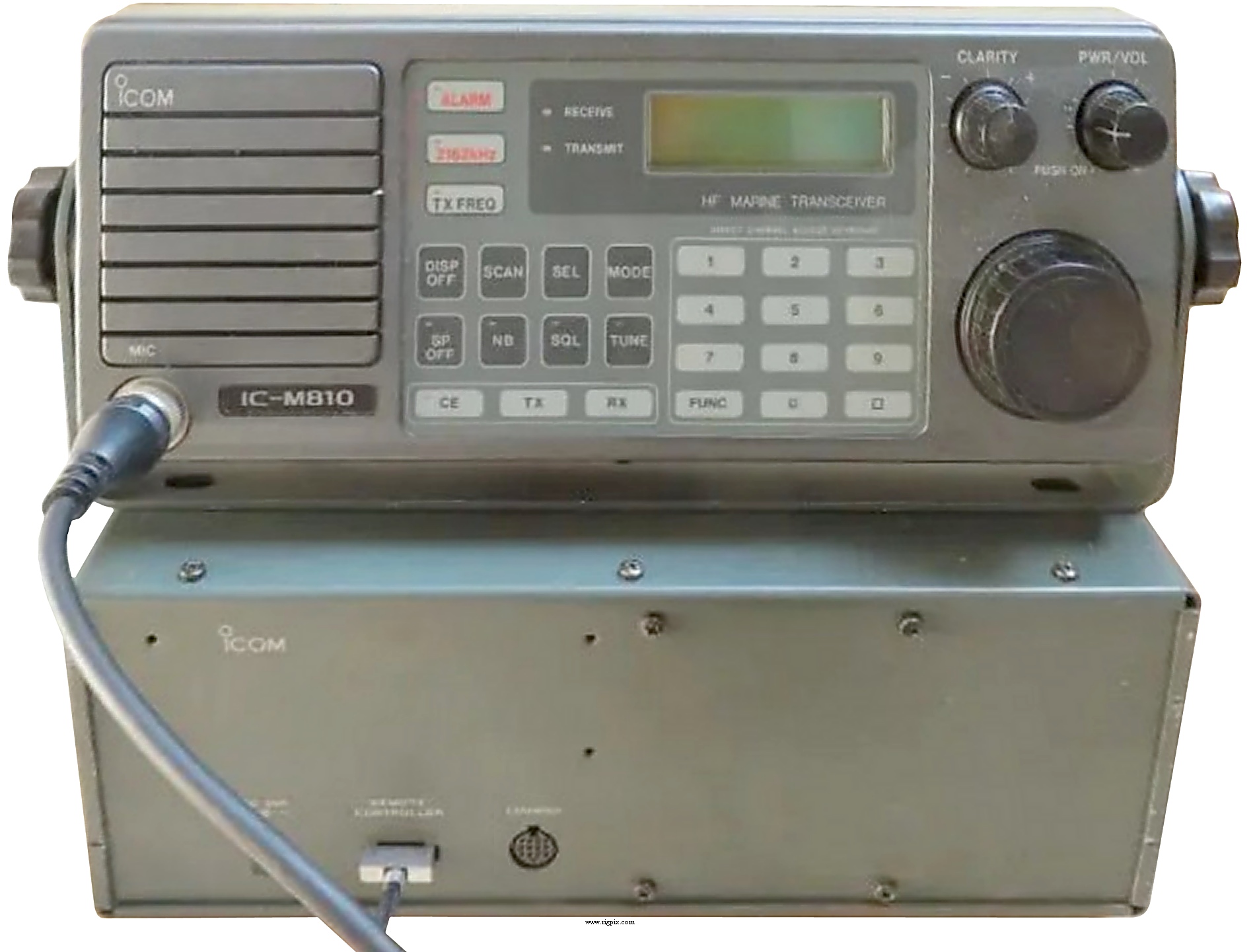

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 2-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-17 / 18-20 / 22-23 / 25-26.5 MHz
RX: 0.5-30 MHz
|
| Tuning steps: | Channelized or 100 Hz |
| Frequency stability: | ±15 Hz @ -30 to +60°C (-22 to +140°F) |
| Mode: | TX: SSB / CW / FSK
RX: AM / SSB / CW / FSK |
| Channels / memory management: |
160 user programmable
242 ITU SSB duplex
72 ITU simplex
462 ITU FSK duplex
72 ITU FSK simplex
|
| Duplex shift / offset: | According to bandplan
Programmable |
| Power supply: | 13.6 VDC ±15% |
| Current drain / power consumption: | RX: Max 2 A
TX: Max 30 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Main unit: 287*112*325 mm (11.3*4.4*12.8")
Controller: 287*112*62 mm (11.3*4.4*2.4") |
| Weight: | Main unit: 6.5 Kg (14.3 lb)
Controller: 1 Kg (2.2 lb) |
| Other features: |
2182 KHz and alarm buttons. Scanning.
Intercom function (Requires two controllers).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
AM (12 dB SINAD)
0.5-1.8 MHz: 30 uV
1.8-30 MHz: 3.16 uV
SSB/CW/FSK (12 dB SINAD)
0.5-1.8 MHz: 6.3 uV
1.8-30 MHz: 0.5 uV
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 5 W at ?% distortion / 4 ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Below 25 MHz: Max 150 W (PEP)
Above 25 MHz: Max 60 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1993-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (6.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-120
AT-130
EX-803
EX-804
FL-32A
HS-50
MN-100
MN-100L
OPC-248
PS-60
PS-65
PS-66
|
Automatic antenna tuner
Automatic antenna tuner
Remote controller
Expander unit
CW narrow filter (500 Hz)
Handset
Antenna matcher (Dipole or whip)
Antenna matcher (Whip or longwire)
Extension interface cable. 20 m (65 ft)
AC power supply. 13.6 VDC, 30 A
DC/DC-converter. 10.5-16 V to 13.6 V, 30 A
DC/DC-converter. 19-32 V to 13.6 V, 30 A
|
|
