PNI PMR R30 Pro

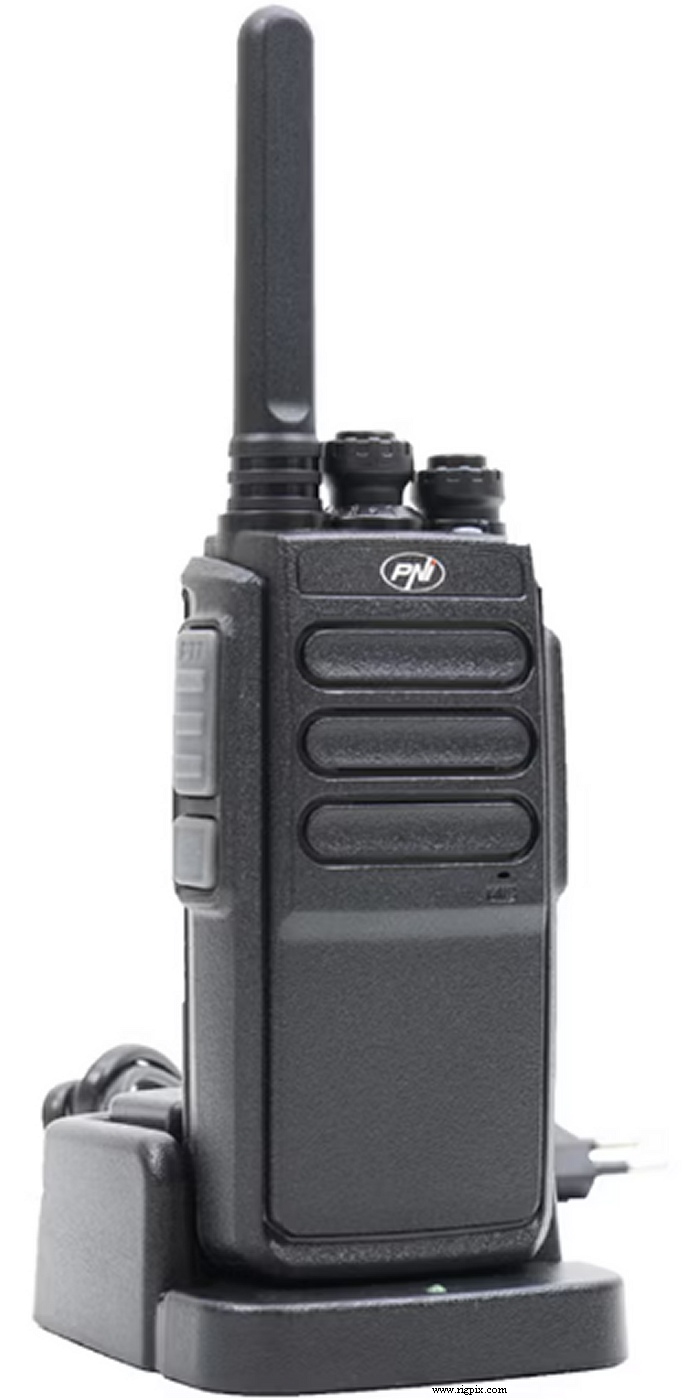

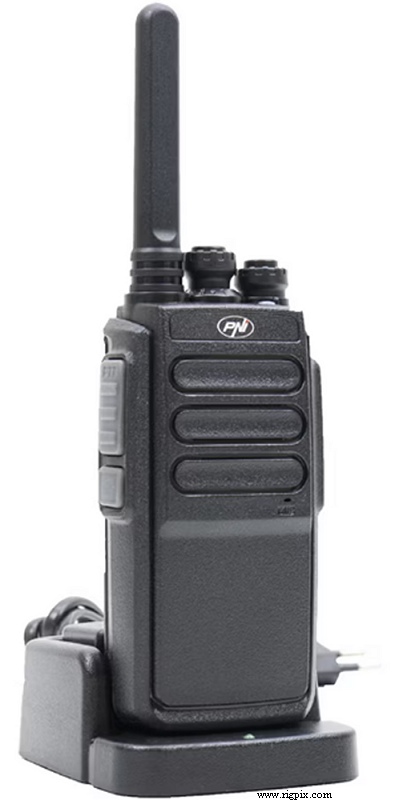

A picture of PNI PMR R30 Pro

SPECIFICATIONS

GENERAL
Type:License-free PMR446 transceiver
Frequency range:446.00625-446.09375 MHz
Channels / tuning steps:16
The lower eight PMR446 channels without CTCSS/PL plus
the same lower eight repeated but with CTCSS/PL 114.8 Hz)
Frequency stability:? ppm
Mode:NFM
Memory channels / management:
Repeater shift / offset:Simplex only
Power supply:3.7 VDC (Li-Ion battery)
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance / connector:50 ohm / Non-removable antenna
Dimensions (W*H*D):58*187*33 mm (2.28*7.36*1.3")
Weight:170 g (5.8 oz), with battery
Other features: CTCSS/PL. LED flashlight. Scanning.
Micro USB charging jack or desktop charger.




RECEIVER SECTION
Receiver system:
Sensitivity:
Squelch sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:TRS "Minijack" (3.5 mm)




TRANSMITTER SECTION
RF output power:Max 500 mW (ERP)
Modulation system:
Max FM deviation (Factory set):±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / Built-in
or ? ohm / TRS "Subminijack" (2.5 mm)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:200x-20xx (Discontinued)
Additional info:
Related documents:User manual (2.8 MB, Multilanguage)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

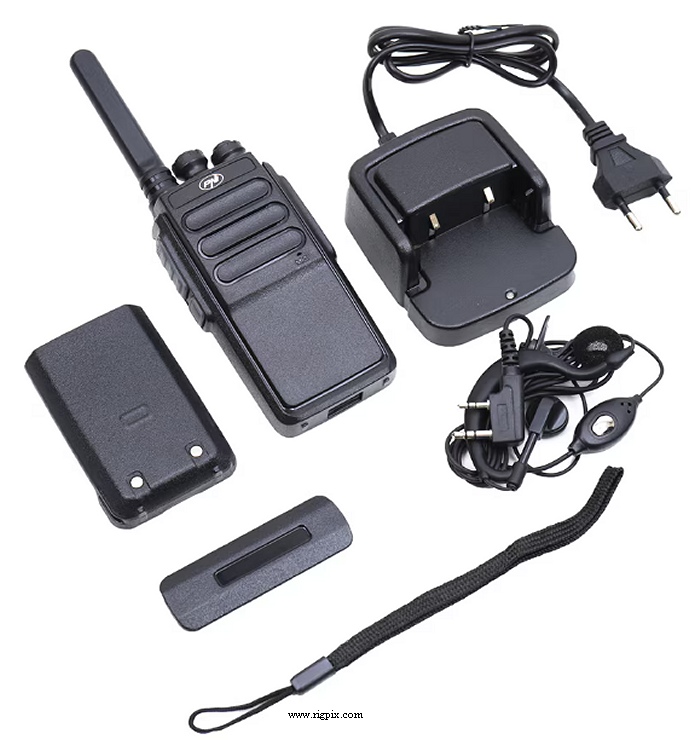

A picture of the PNI PMR R30 Pro kit
