| GENERAL |

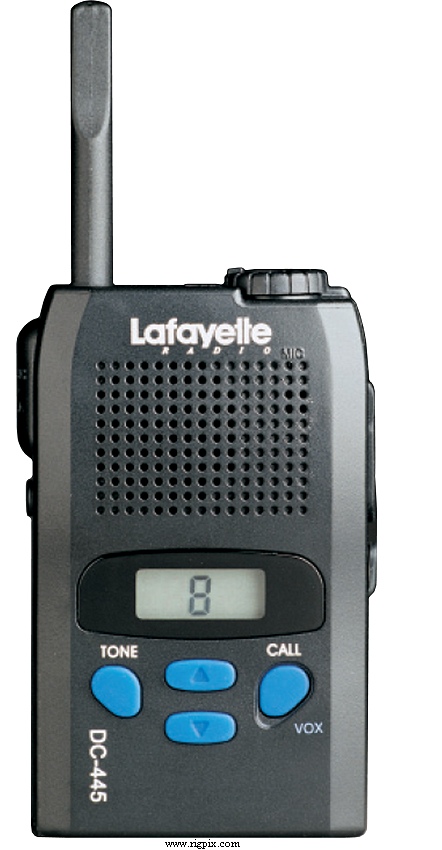

| Type: | License-free PMR446 transceiver |
| Frequency range: | 446.00625-446.09375 MHz |
| Channels / tuning steps: | 8 |
| Frequency stability: | ? ppm |
| Mode: | NFM |
| Memory channels / management: | None |
| Repeater shift / offset: | Simplex only |
| Power supply: | 3-4.5 VDC (Three R03 / AAA alkaline or NiMH batteries) |
| Current drain / power consumption: | RX: 25 mA (Squelched)
TX: Max 350 mA |
| Antenna impedance / connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 55*85*20 mm (2.16*3.35*0.79") |
| Weight: | 105 g (3.7 oz), with batteries |
| Other features: |
CTCSS/PL. VOX. Scanning. Call tone.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 125 mW at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 500 mW (ERP) |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2003-200x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (242 KB, In swedish)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
