| GENERAL |

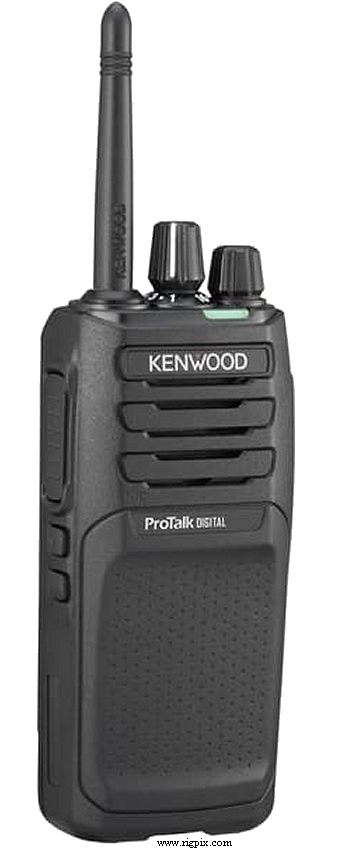

| Type: | License-free dual mode dPMR446 / PMR446 transceiver |
| Frequency range: |
Digital:
446.003125-446.196875 MHz
Analog:
446.00625-446.19375 MHz
|
| Channels / tuning steps: |
Digital: 32
Analog: 16
|
| Frequency stability: | ±0.5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | DV (FDMA) / NFM |
| Memory channels / management: |
48 regular in 3 zones
|
| Repeater shift / offset: | Simplex only |
| Power supply: | 7.5 VDC ±20% |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 54*123*34 mm (2.12*4.84*1.34"), with KNB-45L |
| Weight: | 282 g (9.95 oz) |
| Other features: |
CTCSS/PL and DCCS (QT/DQT). VOX. Voice guide. Scrambler.
Call alert. Scanning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | DV / NFM: Max 500 mW (ERP) |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2020-202x |
| Reset procedure: |
With the transceiver off, press and hold the PTT switch, the
SIDE 1 button and the SIDE 2 button while turning the power on.
Continue to hold the buttons until the LED lights yellow. Release
the buttons. The transceiver is now reset to factory default.
|
| Additional info: | |
| Related documents: |
User manual (2.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
KNB-45L
KSC-35S
|
Li-Ion battery pack. 7.4 V, 1880 mAh / 14 Wh
Rapid charger
|
|
