Lafayette HA-63

A picture of Lafayette HA-63

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.55-31 MHz in 4 bands
A:   0.55-1.6 MHz
B:   1.6-4.8 MHz
C:   4.8-14.5 MHz
D:   10.5-31 MHz

Electrical bandspread on ham bands
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / CW
Channels / memory management: None
Power supply:Mains: 117 VAC
Current drain / power consumption:? W
Antenna impedance / connector:? ohm / Screw terminal
Dimensions (W*H*D):330*198*254 mm (13*7.8*10")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:1.5 uV (No reference)
Selectivity:
Image rejection:
AF output power / speaker:1.5 W at ?% distortion / No internal speaker
External speaker connector:4-8 ohm




MISCELLANEOUS
Manufactured:1964-1966 (Discontinued)
Additional info: 7 tubes
New price 1964 in the US: $59.95 (Without speaker)
New price 1965 in the US: $64.50 (Without speaker)
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
HE-48 Matching speaker

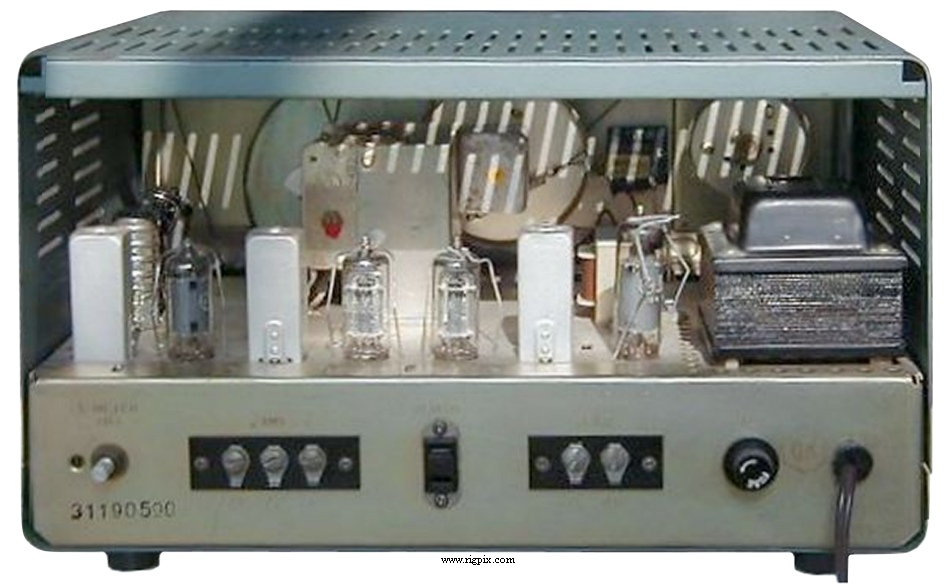

A rear picture of Lafayette HA-63
