| GENERAL |

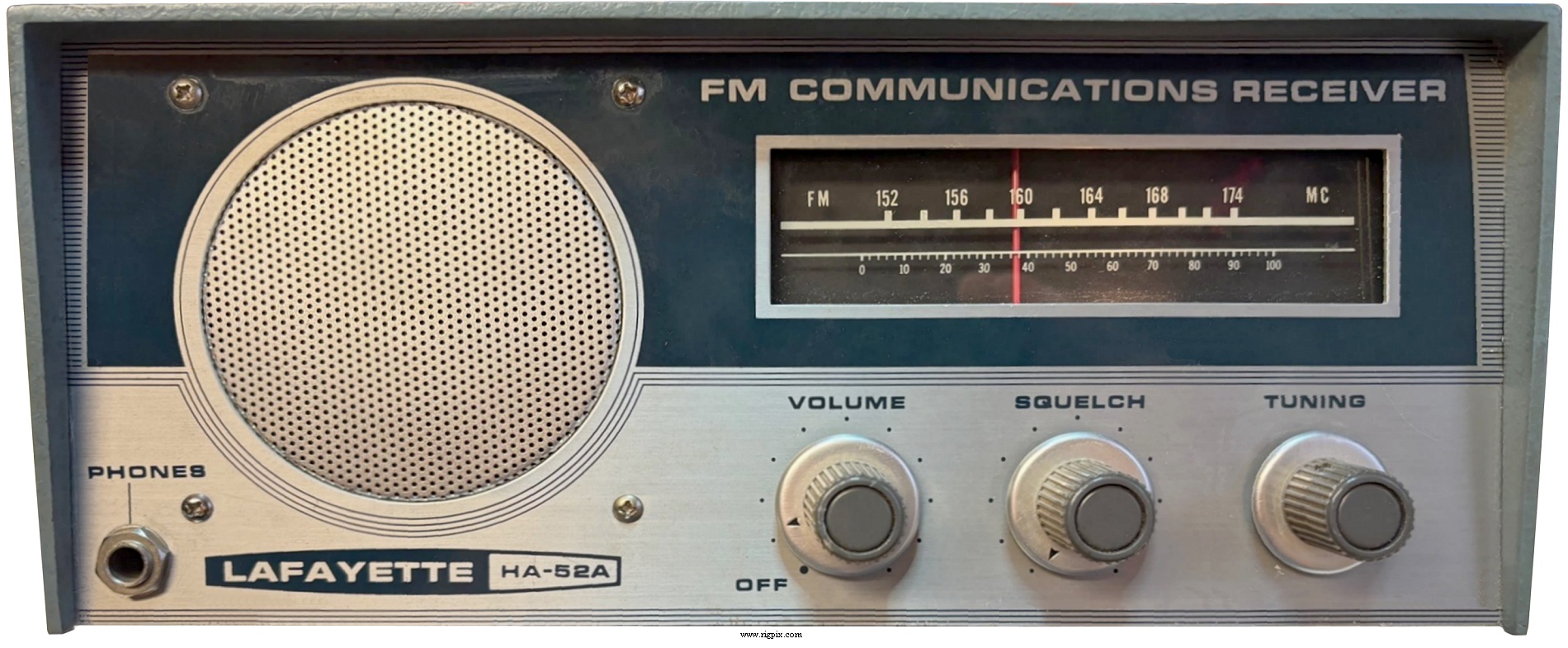

| Type: | VHF receiver |
| Frequency range: |
152-174 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | FM |
| Channels / memory management: |
None
|
| Power supply: | Mains: 110-117 / 220-230 VAC (Fixed power cord) |
| Current drain / power consumption: | 45 W |
| Antenna impedance / connector: | 50-75 ohm / Screw terminals |
| Dimensions (W*H*D): | 201*133*188 mm (11.06*5.25*7.38") |
| Weight: | 4.54 Kg (10 lb) |
| Other features: | 6CW4 nuvistor frontend. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.7 MHz
|
| Sensitivity: | Less than 4 uV (20 dB noise quieting) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | 23 dB |
| AF output power / speaker: | 800 mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1966-1967 (Discontinued) |
| Additional info: |

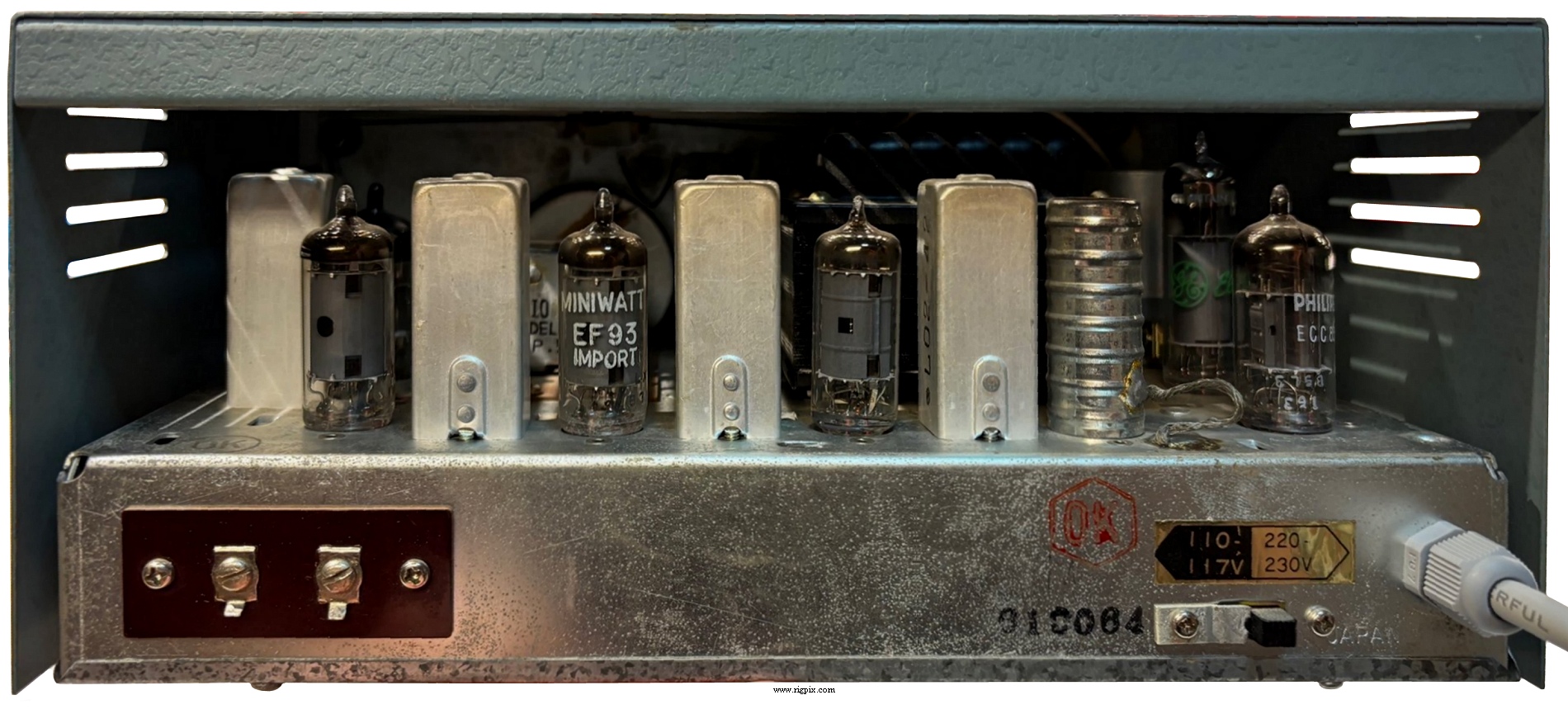

8 tubes.
New price 1966 in the US: $59.95
New price 1967 in the US: $59.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
