Lafayette BCR-101 (99-33805W)

A picture of Lafayette BCR-101 (99-33805W)

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.17-0.4 / 0.53-30 MHz in six bands
A:   0.17-0.4 MHz
B:   0.53-1.5 MHz
C:   1.4-4.0 MHz
D:   3.5-7.5 MHz
E:   7.5-15 MHz
F:   15-30 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: None
Power supply:Mains: 105-120 VAC
or 13.8 VDC (3-pin connector)
Current drain / power consumption:Less than 500 mA @ 13.8 VDC
Antenna impedance / connector:50-75 ohm / Screw terminals
- / Ferrite bar antenna for band B
Dimensions (W*H*D):301*178*241 mm (12*7*9.5")
Weight:6.1 Kg (13.5 lb)
Other features:Variable NB. 50/500 KHz marker. Bandspread 0-500 KHz.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (Band A-C)
IF: 455 KHz
Double conversion superheterodyne (Band D-F)
1st IF: 1.65-2.15 MHz
2nd IF: 455 KHz
Sensitivity: Band A, C, D, E, F: 1 uV (No reference)
Band B: 110 uV/m (No reference)
Selectivity:Wide: 8 KHz (No reference)
Narrow: 3 KHz (No reference)
Image rejection:50-70 dB (Depending on band)
AF output power / speaker:2 W at 10% distortion / 8 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1979-198x (Discontinued)
Additional info:New price, may 1979 in the US: $249.95
Related documents:
Modifications and fixes:
Reviews:Popular Electronics: May 1979, page 76
Options / Accessories:
- -

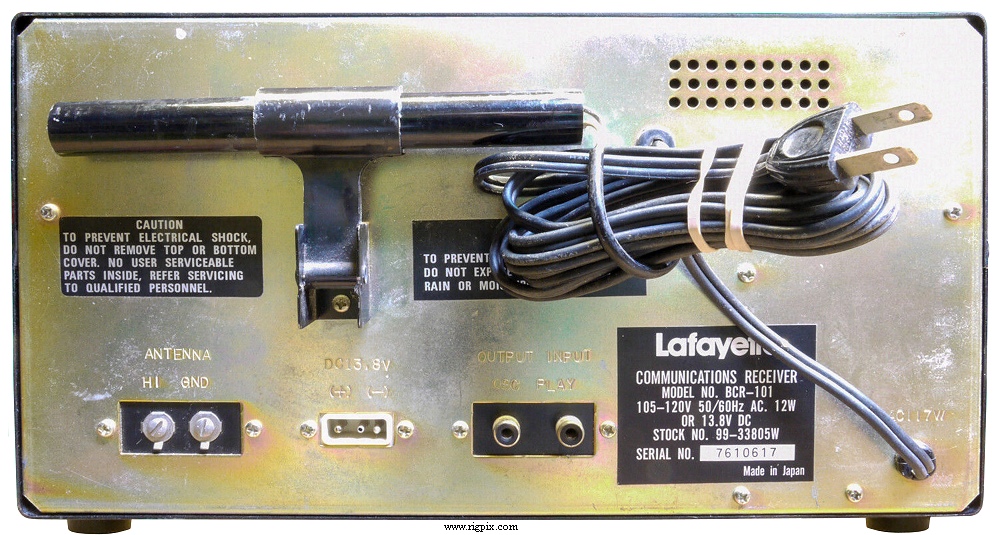

A rear picture of Lafayette BCR-101 (99-33805W)
