| GENERAL |

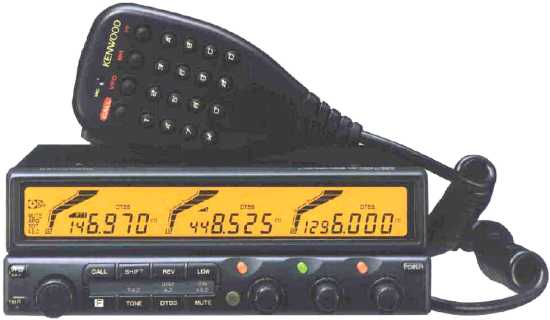

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 440-450 / 1240-1300 MHz
RX: 118-174 / 410-470 / 1100-1400 MHz
|
| Tuning steps: | 2 m/70 cm: 5 / 10 / 12.5 / 15 / 20 / 25 KHz
23 cm: 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F), ±3 ppm for 23 cm |
| Mode: | TX: FM
RX: AM / FM |
| Channels / memory management: |
100 regular per band
1 call per band
RAM storage with lithium battery backup
|
| Repeater shift / offset: |
2 m: ±600 KHz
70 cm: ±5 MHz
23 cm: ±12 and -20 MHz
|
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Less than 1.2 A (No signal)
TX: Less than 11.5 A |
| Antenna impedance / connector: | 50 ohm / ? (On pigtails) |
| Dimensions (W*H*D): | 150*50*175 mm (5.91*1.97*6.89") |
| Weight: | 1.8 Kg (3.97 lb) |
| Other features: | CTCSS/PL encoder. DTSS. DTMF. Clock. ALT. Dimmer. Triple RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz (2 m) - 21.6 MHz (70 cm) - 59.7 MHz (23 cm)
2nd IF: 455 KHz
|
| Sensitivity: |
2 m/70 cm: 0.16 uV (12 dB SINAD)
23 cm: 0.22 uV (12 dB SINAD)
|
| Selectivity: | 12 KHz (-6 dB)
2 m/70 cm: 24 KHz (-60 dB)
23 cm: 36 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 10 W | 5 W |
| 70 cm: | 35 W | 10 W | 5 W |
| 23 cm: | 10 W | 10 W | 1 W |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | 2 m/70 cm: Better than -60 dB
23 cm: Better than -50 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (3.6 MB)
Service manual (10.5 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
DFK-3
DFK-4
DFK-7
MB-14
MC-45
MC-45DM
MC-45DME
MC-45E
MJ-88
MJ-89
PG-2N
PG-3B
PG-3G
PS-33
SP-41
SP-50B
TSU-7
|
Detachable front panel mounting kit. 3 m (9.8 ft)
Detachable front panel mounting kit. 4 m (13.1 ft)
Detachable front panel mounting kit. 7 m (23 ft)
Mobile mounting bracket
Multifunction hand microphone
Multifunction hand microphone with DTMF
Multifunction hand microphone with DTMF (Europe)
Multifunction hand microphone (Europe)
Modular to 8-pin microphone adapter
Modular plug microphone switch
DC cable
Noise filter power cable
DC line noise filter
Power supply. 13.8 VDC, 20.5 A
Mobile speaker
Communications speaker
CTCSS/PL decoder unit
|
|
