Icom IC-PCR100

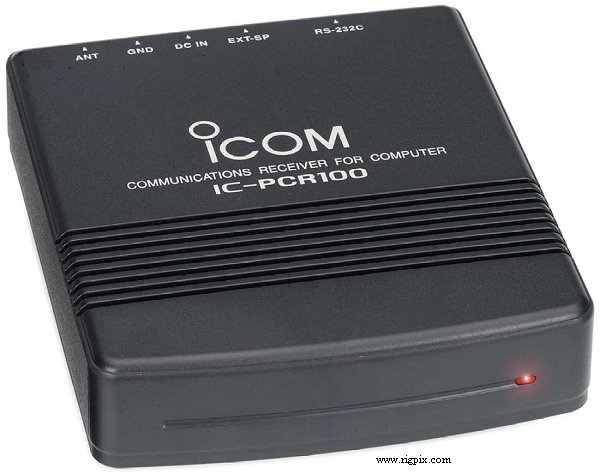

A picture of Icom IC-PCR100

SPECIFICATIONS

GENERAL
Type:Computer controlled HF/VHF/UHF receiver/scanner
Frequency range:0.01-1300 MHz (Cellular blocked in the US)
Tuning steps:1 / 5 / 6.25 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 500 KHz
1 / 10 MHz
Frequency stability:5 ppm @ 1300 MHz (0-50C - 32-122F)
Mode:AM / FM / WFM
Channels/memory management: 1000 regular in 20 banks. Alpha tags.
20 programmed scan ranges
Power supply:13.8 VDC 15%
Current drain/power consumption:Max 700 mA
Antenna impedance/connector:50 ohm / BNC
Dimensions (W*H*D):131*34*154 mm (5.16*1.34*6.06")
Weight:500 g (17.64 oz)
Other features:RS-232C. Attenuator. CTCSS/PL.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne (WFM)
1st IF: 266.7 MHz
2nd IF: 10.7 MHz
Triple conversion superheterodyne (AM/FM)
1st IF: 266.7 MHz
2nd IF: 10.7 MHz
3rd IF: 450 KHz
Sensitivity: AM (10 dB S/N. 6 KHz BW)
0.5-1.8 MHz: 2.5 uV
1.8-50 MHz: 1.8 uV
50-700 MHz: 1 uV
700-1300 MHz: 1.3 uV
FM (12 dB SINAD. 15 KHz BW)
28-50 MHz: 0.5 uV
50-700 MHz: 0.32 uV
700-1300 MHz: 0.4 uV
WFM (12 dB SINAD. 230 KHz BW)
50-700 MHz: 0.79 uV
700-1300 MHz: 1 uV
Selectivity: Depending on selected bandwidth
AM/FM: 6 KHz (-6 dB)
AM/FM: 15 KHz (-6 dB)
AM/FM/WFM: 50 KHz (-6 dB)
WFM: 230 KHz (-6 dB)
Image rejection:
AF output power/speaker:200 mW (Monaural) at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 4-8 ohm




MISCELLANEOUS
Manufactured:Japan, 1998-200x (Discontinued)
Additional info:New price 2001 in Sweden: SEK 4300:-
Related documents:User manual (486 KB)
Modifications and fixes:
Reviews:
Options/Accessories:
- -
