| GENERAL |

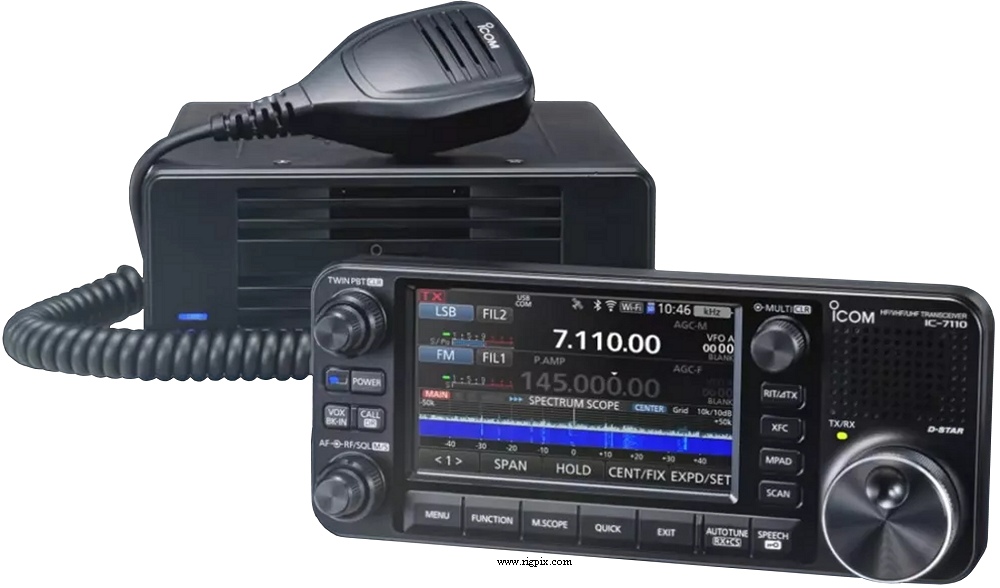

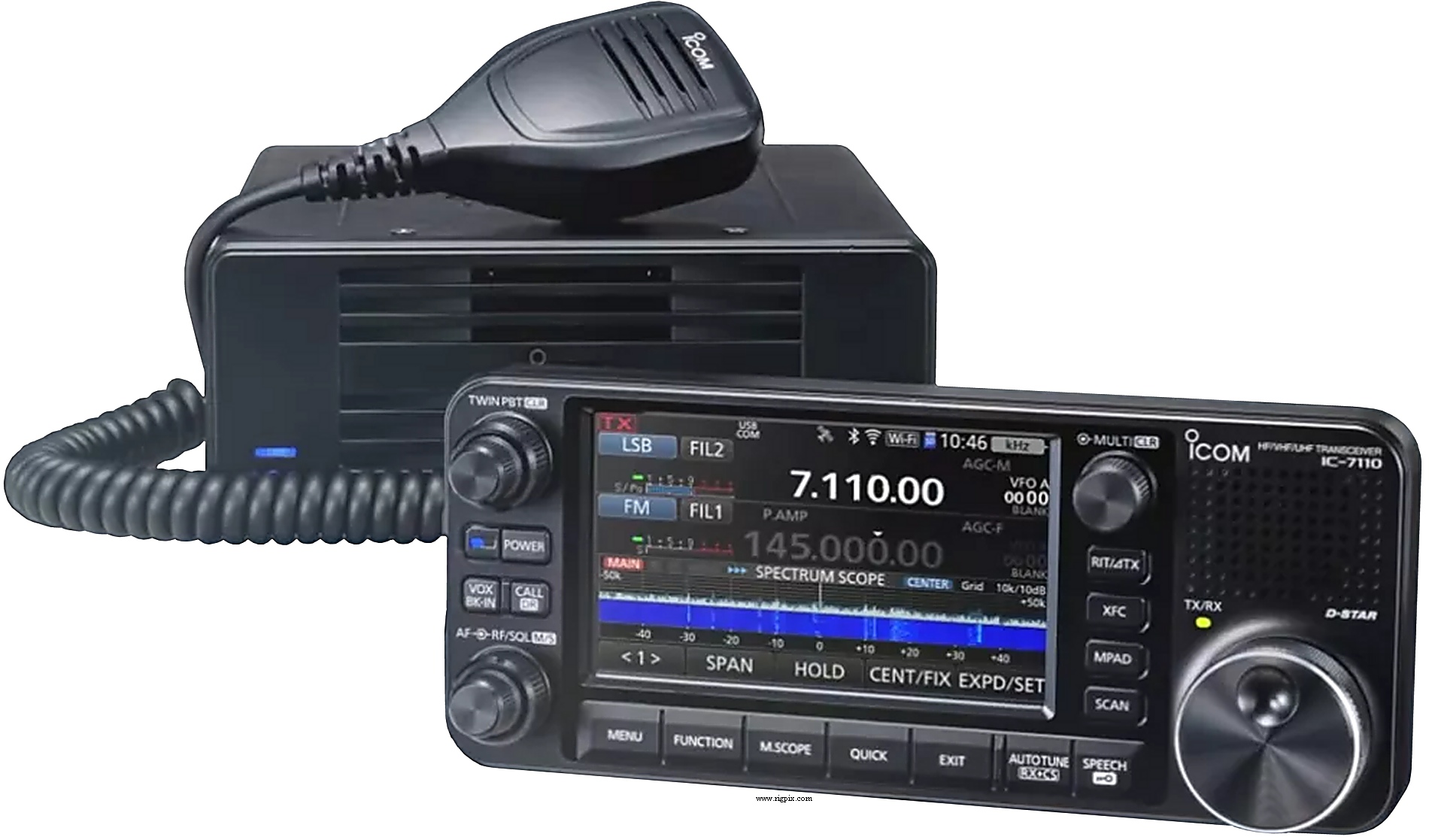

| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: |
TX: HF / 6 m / (4 m) / 2 m / 70 cm
RX: ?-? MHz
NB! 4 m is only available in EU and UK versions
|
| Tuning steps: | Down to 1 Hz |
| Frequency stability: | ±? ppm |
| Mode: | AM / FM / NFM / SSB / CW / RTTY / DV (D-Star) |
| Channels / memory management: |
500 regular with alpha tags
4 call
2500 repeater
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC (4-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: Less than 22 A? |

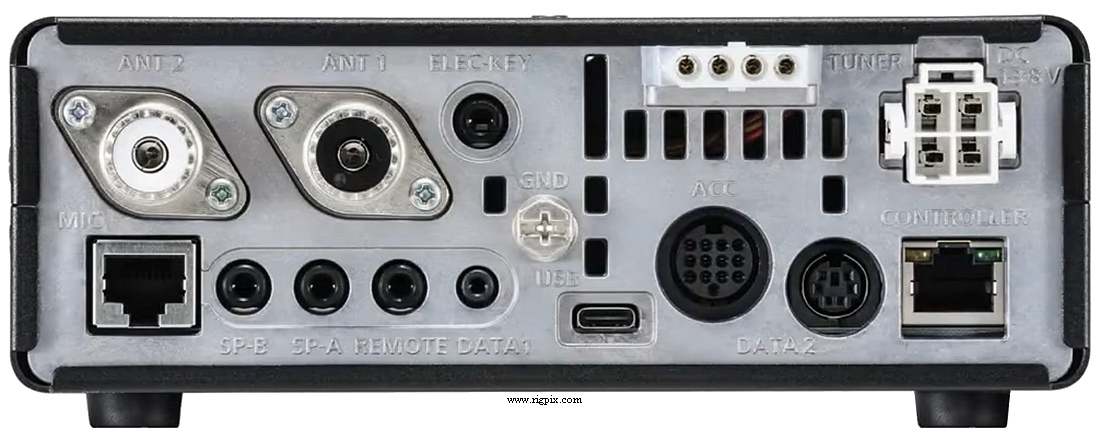

| Antenna impedance / connector: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | Main unit: ? mm (?")

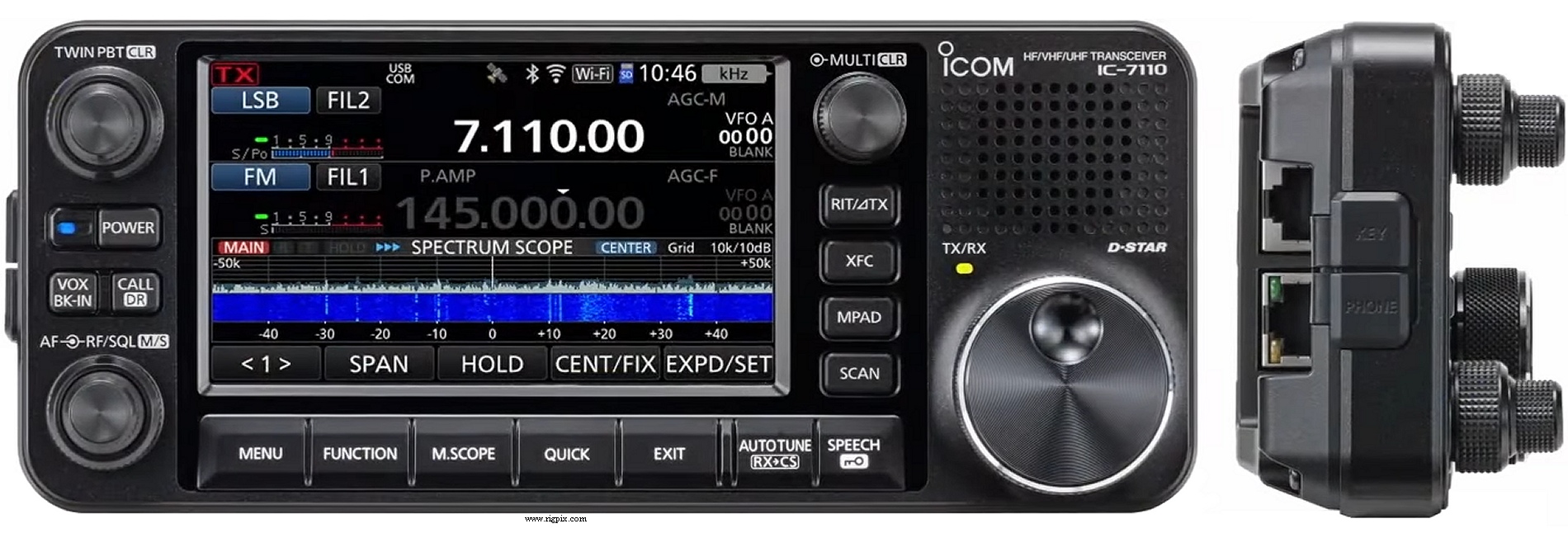

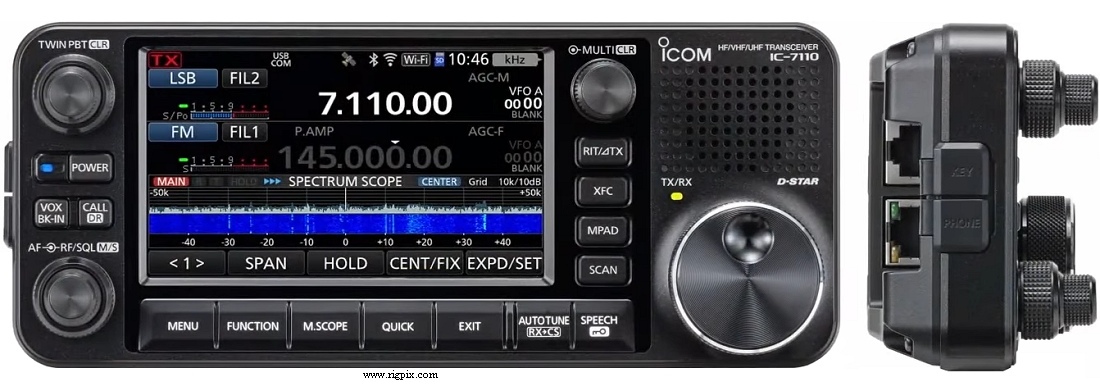

Controller: 200*84*36 mm (7.87*3.29*1.42") |
| Weight: | Main unit: ? Kg (? lb)
Controller: ? g (? oz) |
| Other features: |
4.3" color touchscreen with auto dimmer. High resolution waterfall, spectrum and audio scope.
Backlit physical controls. microSD card slot. GPS. WiFi (Dual band). Ethernet. Bluetooth v5.3.
USB-C port. RTTY and CW decoder. Speech synthesizer. Voice recorder. CI-V. DSP. Dual receive
with DV dualwatch. D-Star terminal/access point mode and DR function. Data mode presets. VOX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Direct sampling superheterodyne
IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | Two TS "Minijacks" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m | (4 m) | 2 m | 70 cm |
|---|
| AM: | 30 W? | 30 W? | 15 W? | 15 W? | 15 W? |
| FM: | 100 W | 100 W | 50 W | 50 W | 50 W |
| SSB (PEP): | 100 W | 100 W | 50 W | 50 W | 50 W |
| CW: | 100 W | 100 W | 50 W | 50 W | 50 W |
| DV: | 100 W | 100 W | 50 W | 50 W | 50 W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2027? |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BT-002
RS-BA1 v2
RS-MS3A
RS-MS3I
ST-4001A
ST-4001I
|
Bluetooth headset
Remote control PC software
Android control app
iOS control app
Android picture app
iOS picture app
|
|
